Features: High Voltage Type (20V Rating)
24 Flip-Flop Stage - Counts from 20 to 224
Last 16 Stages Selectable by BCD Select Code
Bypass Input Allows Bypassing First 8 Stages
On-Chip RC Oscillator Provision
Clock Inhibit Input
Schmitt Trigger in clock Line Permits Operation with
Very Long Rise and Fall Times
On-Chip Monostable Output Provision
Typical fCL = 3MHz at VDD = 10V
Test Mode Allows Fast Test Sequence
Set and Reset Inputs
Capable of Driving Two Low Power TTL Loads, One
Lower Power Schottky Load, or Two HTL Loads Over
the Rated Temperature Range
100% Tested for Quiescent Current at 20V
5V, 10V and 15V Parametric Ratings
Standardized, Symmetrical Output Characteristics
Meets All Requirements of JEDEC Tentative Standard
No. 13B, "Standard Specifications for Description of

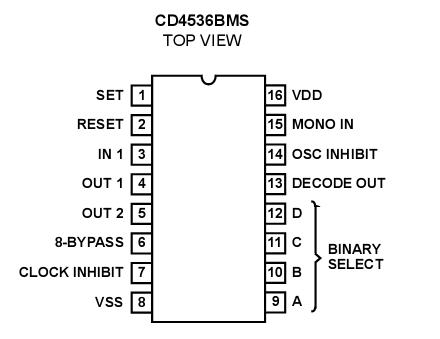

'B' Series CMOS Devices"Pinout
SpecificationsDC Supply Voltage Range, (VDD) . . . . . . . . . . . . .......... . . -0.5V to +20V
(Voltage Referenced to VSS Terminals)
Input Voltage Range, All Inputs . . . . . . . . . . . ........ .-0.5V to VDD +0.5V
DC Input Current, Any One Input . . . . . . . . . . . . . . . . . . . . . . . .±10mA
Operating Temperature Range. . . . . . . . . . . . . ....... . . -55 C to +125
Package Types D, F, K, H
Storage Temperature Range (TSTG). . . . . . . . ......... . . -65 C to +150
Lead Temperature (During Soldering) . . . . . . . . . . . . . ....... . . . +265 DescriptionCD4536BMS is a programmable timer consisting of 24 ripple binary counter stages. The salient feature of this device is its 24 flexibility. CD4536BMS can count from 1 to 2 or the first 8 stages can be bypassed to allow an output, selectable by a 4-bit code, from any one of the remaining 16 stages. CD4536BMS can be driven by an external clock or an RC oscillator that can be constructed using on-chip components. Input IN1 serves as either the external clock input or the input to the on-chip RC oscillator. OUT1 and OUT2 are connection terminals for the external RC components. In addition, an on-chip monostable circuit is provided to allow a variable pulse width output. Var- ious timing functions can be achieved using combinations of these capabilities.
A logic 1 on the 8-BYPASS input enables a bypass of the first 8 stages and makes stage 9 the first counter stage of the last 16 stages. Selection of 1 of 16 outputs is accom- plished by the decoder and the BCD inputs A, B, C and D. MONO IN is the timing input for the on-chip monostable oscillator. Grounding of the MONO IN terminal through a resistor of 10k or higher, disables the one-shot circuit and connects the decoder directly to the DECODE OUT terminal. A CD4536BMS resistor to VDD and a capacitor to ground from the MONO IN terminal enables the one-shot circuit and controls its pulse width.
A fast test mode CD4536BMS is enabled by a logic 1 on 8-BYPASS, SET, and RESET. CD4536BMS divides the 24-stage counter into three 8-stage sections to facilitate a fast test sequence.
The CD4536BMS is supplied in these 16-lead outline packages:
CD4536BMS Data Sheet
