CD74AC00 General Description
The CD74AC00 and CD74ACT00 are quad 2-input NANDgates that utilize the Harris Advanced CMOS Logic technology.
CD74AC00 Maximum Ratings
DC Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to 6V
DC Input Diode Current, IIK For VI < -0.5V or VI > VCC + 0.5V . . . . . . . . . . . . . . . . . . . . . .±20mA
DC Output Diode Current, IOK For VO < -0.5V or VO > VCC + 0.5V . . . . . . . . . . . . . . . . . . . .±50mA
DC Output Source or Sink Current per Output Pin, IO For VO > -0.5V or VO < VCC + 0.5V . . . . . . . . . . . . . . . . . . . .±50mA
DC VCC or Ground Current, ICC or IGND (Note 3) . . . . . . . . .±100mA
CD74AC00 Features
• Typical Propagation Delay - 3.2ns at VCC = 5V, TA = 25oC, CL = 50pF
• Exceeds 2kV ESD Protection MIL-STD-883, Method 3015
• SCR-Latchup-Resistant CMOS Process and Circuit Design
• Speed of Bipolar FAST™/AS/S with Significantly Reduced Power Consumption
• Balanced Propagation Delays
• AC Types Feature 1.5V to 5.5V Operation and Balanced Noise Immunity at 30% of the Supply
• ±24mA Output Drive Current - Fanout to 15 FAST™ ICs - Drives 50W Transmission Lines

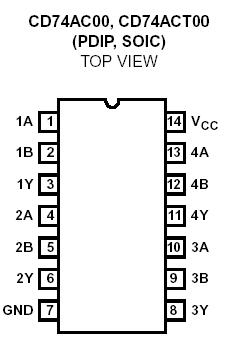

CD74AC00 Connection Diagram
