Product Details

Description



Features:

 Spread Spectrum Clock Compatible
100 MHz Maximum Frequency
 Available in Plastic 24-Pin TSSOP
 Phase-Lock Loop Clock Distribution for Synchronous DRAM Applications
 Distributes One Clock Input to One Bank of Five and One Bank of Four Outputs
 Separate Output Enable for Each Output Bank
 External Feedback (FBIN) Pin Is Used to Synchronize the Outputs to the Clock Input
 On-Chip Series Damping Resistors
 No External RC Network Required
 Operates at 3.3-V VCC



Pinout

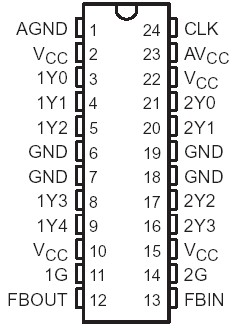

  Connection Diagram


Specifications

Supply voltage range, AVCC (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .AVCC < VCC +0.7 V
Supply voltage range, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .0.5 V to 4.6 V
Input voltage range, VI (see Note 2)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 6.5 V
Voltage range applied to any output in the high or low state,
        VO (see Notes 2 and 3)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   . . .0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±50 mA
Continuous output current, IO (VO = 0 to VCC)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .±50 mA
Continuous current through each VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . ±100 mA
Maximum power dissipation at TA = 55°C (in still air) (see Note 4) . . . . . . . . . . . . . . . . .. . . . . . . . .0.7 W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .65°C to 150°C



Description

The CDC2509A is a high-performance, low-skew, low-jitter, phase-lock loop (PLL) clock driver. It uses a PLL to precisely align, in both frequency and phase, the feedback (FBOUT) output to the clock (CLK) input signal. It is specifically designed for use with synchronous DRAMs. The CDC2509A operates at 3.3-V VCC and provides integrated series-damping resistors that make it ideal for driving point-to-point loads.

One bank of five outputs and one bank of four outputs CDC2509A provide nine low-skew, low-jitter copies of CLK. Output signal duty cycles are adjusted to 50 percent, independent of the duty cycle at CLK. Each bank of outputs can be enabled or disabled separately via the control (1G and 2G) inputs. When the G inputs are high, the outputs switch in phase and frequency with CLK; when the G inputs are low, the outputs are disabled to the logic-low state.

Unlike many products containing PLLs, the CDC2509A does not require external RC networks. The loop filter for the PLL is included on-chip, minimizing component count, board space, and cost.

Because it is based on PLL circuitry, the CDC2509A requires a stabilization time to achieve phase lock of the feedback signal to the reference signal. This stabilization time is required, following power up and application of a fixed-frequency, fixed-phase signal at CLK, and following any changes to the PLL reference or feedback signals. The PLL can be bypassed for test purposes by strapping AVCC to ground.

The CDC2509A is characterized for operation from 0°C to 70°C.
