CEB-27D44

BUZZER PIEZO ELEMENT 4.4KHZ 27MM

product image

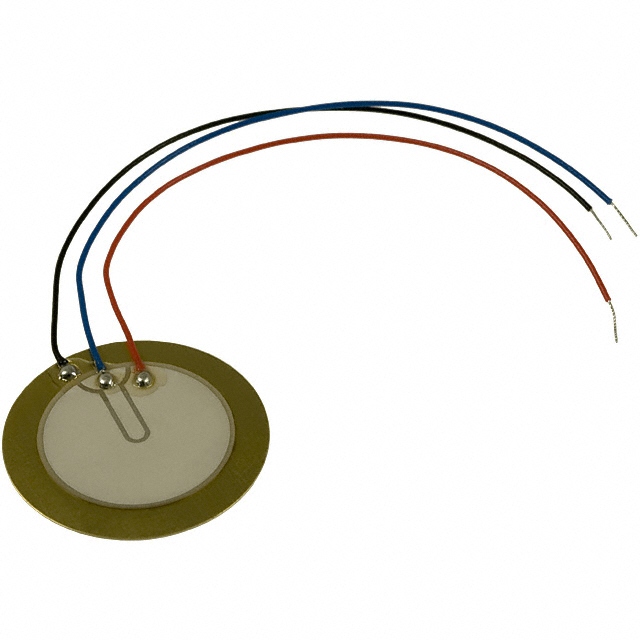

CEB-27D44 Picture
See larger image
SeekIC No. : 002844751 Detail

CEB-27D44: BUZZER PIEZO ELEMENT 4.4KHZ 27MM

CEB-27D44 Data Sheet

floor Price/Ceiling Price

US $ .37~1.05 / Piece | Get Latest Price
Part Number:
CEB-27D44
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $1.05
  • $.81
  • $.62
  • $.5
  • $.44
  • $.37
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: CEB Manufacturer: CUI Inc
Frequency: 4.6kHz Type: Standard
Impedance: 250 Ohm Voltage - Input (Max): 20V p-p
Capacitance @ Frequency: 16000pF @ 1kHz Size: 1.06" Dia (27mm)
Dimensions : 10.5 mm x 13.5 mm

Description

Series: CEB
Manufacturer: CUI Inc
Type: Standard
Termination: Wire Leads
Frequency: 4.6kHz
Impedance: 250 Ohm
Voltage - Input (Max): 20V p-p
Capacitance @ Frequency: 16000pF @ 1kHz
Size: 1.06" Dia (27mm)


Specifications

  • recommended circuits: click here
  • operating voltage: 20Vp-p max
  • resonant frequency: 4.6kHz±0.5
  • resonant impedence: 250Ω
  • electrostatic capacity: 16,000 ±30%
  • operating temperature: -20 to +70°C
  • storage temperature: -30 to 80°C
  • diameter: 27.0 mm
  • depth: 0.51 mm
  • weight: 2.0 grams
  • material: brass
  • termination: wire leads
  • 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">



    • Parameters:

    Technical/Catalog InformationCEB-27D44
    VendorCUI Inc
    CategoryAudio Products
    Frequency4.6kHz
    Capacitance @ Frequency16000pF @ 1kHz
    Voltage - Input, Max20V p-p
    Impedance250 Ohm
    PackagingBulk
    Size1.06" Dia (27mm)
    TypeStandard
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names CEB 27D44
    CEB27D44
    102 1127 ND
    1021127ND
    102-1127
