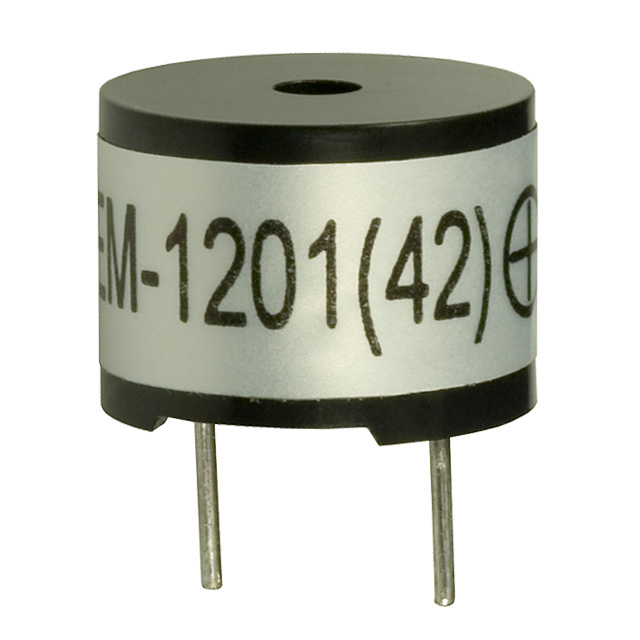

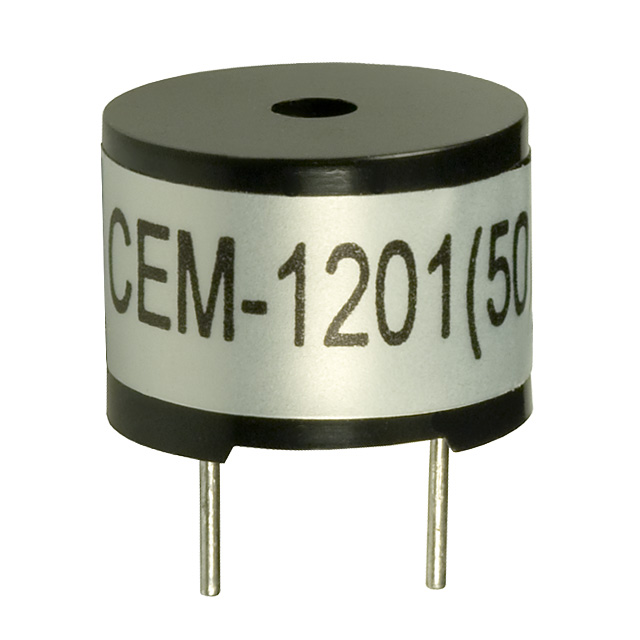

CEM-1201S

Driver Circuitry: Transducer, Externally Driven
Input Type: zero-peak Signal
Operating Mode: Continuous
Mounting Type: Through Hole
Termination: PC Pins
Packaging: Bulk
Series: CEM
Manufacturer: CUI Inc
Technology: Magnetic
Voltage - Rated: 1.5Vo-p
Sound Pressure Level: 80dB @ 1.5V, 10cm
Frequency: 2.4kHz
Washable: Yes
Current - Supply: 40mA
Size / Dimension: Circular - 12.00mm Dia x 10.00mm H
Voltage Range: 1 ~ 3V


Specifications

recommended circuits: click here

rated voltage: 1.5Vo-p

operating voltage: 1-3Vo-p

mean current: 40mA

coil resistance: 16Ω ±3.0

coil impedance: 40Ω

sound pressure level: 80dB

rated frequency: 2400 Hz ±200

operating temperature: -20 to +60°C

storage temperature: -30 to +70°C

diameter: 12.0 mm

depth: 9.5 mm

weight: 1.6 grams

termination: PC pins

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	CEM-1201S
Vendor	CUI Inc
Category	Audio Products
Type	Magnetic Transducer, External Drive
Sound Pressure Level	80dB
Mounting Type	Through Hole
Capacitance @ Frequency	-
Frequency	2.4kHz
Packaging	Bulk
Operating Mode	Continuous
Voltage Range	1~3Vo-p
Voltage - Rated	1.5Vo-p
Current Rating	40mA
Size / Dimension	Circular - 12mm Dia x 9.5mm H
Termination	Solder Pins/Posts
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CEM 1201S CEM1201S 102 1154 ND 1021154ND 102-1154
