Purchase CG7C323A, In-stock CG7C323A From SeekIC.
Part Number: CG7C323A
Description: Cypress PLD devices are high-speed electrically programmable logic devices. These devices utilize the ...
- Table of contents:
CG7C323A
-
Suppliers
DataSheet
General Description
CG7C323A General Description
Cypress PLD devices are high-speed electrically programmable logic devices. These devices utilize the sum-of-products (AND-OR) structure providing users the ability to program custom logic functions for unique requirements.
In an unprogrammed state the AND gates are connected via EPROM cells to both the true and complement of every input. By selectively programming the EPROM cells, AND gates may be connected to either the true or complement or disconnected from both true and complement inputs.
CG7C323A Maximum Ratings
Storage Temperature .................................65°C to +150°C
Ambient Temperature with
Power Applied.............................................55°C to +125°C
Supply Voltage to Ground Potential ............... 0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State ............................................... 0.5V to +7.0V
DC Input Voltage............................................ 3.0V to +7.0V
Output Current into Outputs (LOW) .............................16 mA
DC Programming Voltage
PLDC20G10B and CG7C323BA............................... 13.0V
PLDC20G10 and CG7C323A.................................... 14.0V
Latch-Up Current.....................................................>200 mA
Static Discharge Voltage..............................................>500V
(per MIL-STD-883, Method 8015)
Ambient Temperature with
Power Applied.............................................55°C to +125°C
Supply Voltage to Ground Potential ............... 0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State ............................................... 0.5V to +7.0V
DC Input Voltage............................................ 3.0V to +7.0V
Output Current into Outputs (LOW) .............................16 mA
DC Programming Voltage
PLDC20G10B and CG7C323BA............................... 13.0V
PLDC20G10 and CG7C323A.................................... 14.0V
Latch-Up Current.....................................................>200 mA
Static Discharge Voltage..............................................>500V
(per MIL-STD-883, Method 8015)
CG7C323A Features
• Fast - Commercial: tPD = 15 ns, tCO = 10 ns, tS = 12 ns - Military: tPD = 20 ns, tCO = 15 ns, tS = 15 ns
• Low power - ICC max.: 70 mA, commercial - ICC max.: 100 mA, military
• Commercial and military temperature range
• User-programmable output cells - Selectable for registered or combinatorial operation - Output polarity control - Output enable source selectable from pin 13 or product term
• Generic architecture to replace standard logic functions including: 20L10, 20L8, 20R8, 20R6, 20R4, 12L10, 14L8, 16L6, 18L4, 20L2, and 20V8
• Eight product terms and one OE product term per output
• CMOS EPROM technology for reprogrammability
• Highly reliable - Uses proven EPROM technology - Fully AC and DC tested - Security feature prevents logic pattern duplication - ±10% power supply voltage and higher noise immunity
• Low power - ICC max.: 70 mA, commercial - ICC max.: 100 mA, military
• Commercial and military temperature range
• User-programmable output cells - Selectable for registered or combinatorial operation - Output polarity control - Output enable source selectable from pin 13 or product term
• Generic architecture to replace standard logic functions including: 20L10, 20L8, 20R8, 20R6, 20R4, 12L10, 14L8, 16L6, 18L4, 20L2, and 20V8
• Eight product terms and one OE product term per output
• CMOS EPROM technology for reprogrammability
• Highly reliable - Uses proven EPROM technology - Fully AC and DC tested - Security feature prevents logic pattern duplication - ±10% power supply voltage and higher noise immunity
CG7C323A Connection Diagram
- Datasheet:
- File Size: KB
- Manufacturer:
- Click here to Download
- · EPCS4SI8
- 226669 KB
- · UTC2411
- 136508 KB
- ·(M5M410092B)
- Mitsubishi
- 3D-RAM
- 1268750 KB
- ·_FCQ30A06
- NIEC [Nihon Inter Electronics Corporation]
- LOW FORWARD VOLTAGE DROP
- 29515 KB
- ·0001.2501.PT
- Fuse
- 40400 KB
- ·0001.2501.TR
- Fuse
- 40400 KB
- ·0001.2502.PT
- Fuse
- 40400 KB
- ·0001.2502.TR
- Fuse
- 40400 KB
CG7C323A Relative Products
CG792U075W4C
CAP 7900UF 75V ELECT SCREW TERM

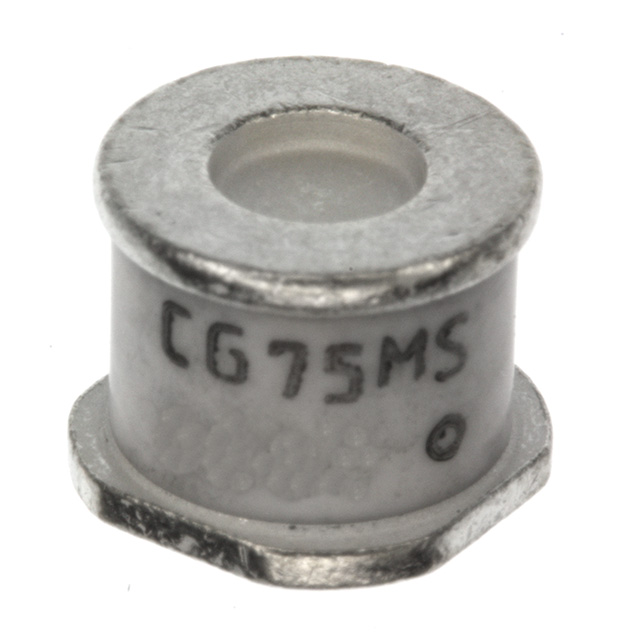

CG75MS
