CGS2535TV

Series: -
Type: Fanout Buffer (Distribution)
Number of Circuits: 1
Differential - Input:Output: No/No
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Packaging: Tube
Output: CMOS
Package / Case: 28-LCC (J-Lead)
Supplier Device Package: 28-PLCC (11.51x11.51)
Input: CMOS
Frequency - Max: 125MHz
Manufacturer: National Semiconductor
Voltage - Supply: 3 V ~ 5.25 V
Ratio - Input:Output: 4:16


Features:

`Guaranteed:
   - 1.0 ns rise and fall times while driving 12 inches of 50W microstrip terminated with 25 pF
   - 350 ps pin-to-pin skew (tOSLH and tOSHL) 650 ps part-to-part variation on positive or negative transition @ 5V V<sub>CC</sub>
`Operates with either 3.3V or 5.0V supply
`Inputs 5V tolerant with VCC in 3.3V range
`Symmetric output current drive: 24 mA I_OH/I_OL
`Industrial temperature range −40 to +85
`Symmetric package orientation
`Large fanout for memory driving applications
`Guaranteed 2 kV ESD protection
`Implemented on National's ABT family process
`28-pin PLCC for optimum skew performance

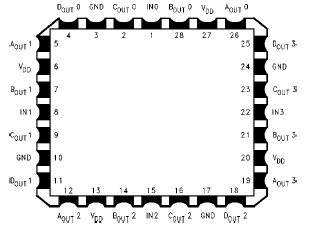

Pinout

Specifications

Supply Voltage (V_CC)                                                  7.0V
Input Voltage (V_I)                                                        7.0V
Input Current                                                           -30 mA
Current Applied to Output
(High/Low)                                     Twice the Rated I_OH/I_OL
Operating Temp. Industrial grade                 -40 to +85
Comm. grade                                                    0 to +70
Storage Temperature Range                       -65 to +150
Airflow Typical                                                                 JA
                                                0 LFM                         62/W
                                              225 LFM                       43/W
                                              500LFM                        34/W
                                              900 LFM                       27/W


Description

These Clock Generation and Support clock drivers are specifically designed for driving memory arrays requiring large fanouts while operating at high speeds.

CGS2535TV meets the rise and fall time requirements of the 90 and 100 MHz Pentium™ processors. The CGS2535 is a non-inverting 4 to 16 driver with CMOS I/O structures. The CGS2535 specification guarantees part-to-part skew variation.
