CH7005C

Features:

·Supports MacrovisionTM 7.X anti-copy protection
·Function compatible with CH7004
·Universal digital interface accepts YCrCb (CCIR601 or 656) or RGB (15,16 or 24-bit) video data in both non-interlaced and interlaced formats
·TrueScale TM rendering engine supports undescam
·operations for various graphic resolutions† ¥
·Enhanced text sharpness and adaptive flicker removal with up to 5-lines of filtering†
·Enhanced dot crawl control and area reduction
·Fully programmable through I2C port
·Supports NTSC, NTSC-EIA (Japan), and PAL (B, D, G, H, I, M and N) TV formats
·Provides Composite, S-Video and SCART outputs
·Auto-detection of TV presence
·Supports VBI pass-through
·Programmable power management
·9-bit video DAC outputs
·Complete Windows and DOS driver software
·Offered in 44-pin PLCC, 44-pin TQFP
·Patent number 5,781,241

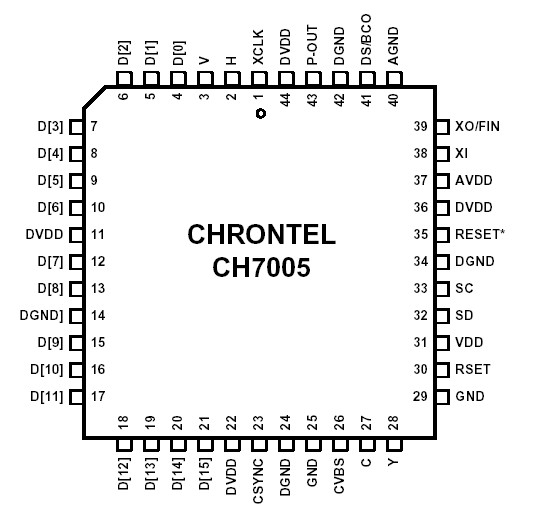

Pinout




Specifications

Symbol	Description	Min	Typ	Max	Units
	VDD relative to GND	- 0.5		7.0	V
	Input voltage of all digital pins1	GND - 0.5		VDD + 0.5	V
TSC	Analog output short circuit duration		Indefinite		Sec
TAMB	Ambient operating temperature	- 55		125
TSTOR	Storage temperature	- 65		150
TJ	Junction temperature			150
TVPS	Vapor phase soldering (one minute)			220

Description

Chrontel's CH7005 digital PC to TV encoder is a standalone integrated circuit which provides a PC 99 compliant solution for TV output. Suggested application use with the Intel I740.* It provides a universal digital input port to accept a pixel data stream from a compatible VGA controller (or equivalent) and converts this directly into NTSC or PAL TV format.

CH7005C integrates a digital NTSC/PAL encoder with 9-bit DAC interface, and new adaptive flicker filter, and high accuracy low-jitter phase locked loop to create outstanding quality video. Through its TrueScaleTM scaling and deflickering engine, the CH7005 supports full vertical and horizontal underscan capability and operates in 5 different resolutions including 640x480 and 800x600.

A new universal digital interface along with full programmability make the CH7005 ideal for system-level PC solutions. All features are software programmable through a standard I2C port, to enable a complete PC solution using a TV as the primary display.
