MFG:Chrontel International Corp.
MFG: Chrontel International Corp.
Description: Chrontel's CH7013B digital PC to TV encoder is a standalone integrated circuit providing a robust solu...
Chrontel's CH7013B digital PC to TV encoder is a standalone integrated circuit providing a robust solution for TV output. It provides a universal digital input port to accept a pixel data stream from a compatible VGA controller (or equivalent) and converts it directly into the NTSC or PAL TV format.
This device integrates a digital NTSC/PAL encoder with a 9- bit DAC interface, an adaptive flicker filter, and a high accuracy low-jitter phase locked loop to create outstanding quality video. Through its true scale scaling and deflickering engine, the CH7013B supports full vertical and horizontal underscan capability and operates in 5 different resolutions including 640x480 and 800x600.
A universal digital interface along with full programmability make the CH7013B ideal for system-level PC solutions. All features are software programmable through a serial port to enable a complete PC solution using a TV as the primary display.
|

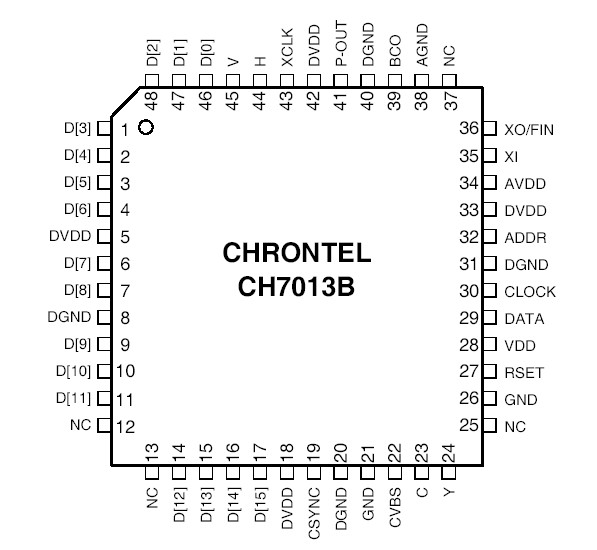

Symbol |
Description |
Min |
Typ |
Max |
Units |
| VDD relative to GND |
- 0.5 |
7.0 |
V | ||
| Input voltage of all digital pins1 |
GND - 0.5 |
VDD + 0.5 |
V | ||
|
TSC |
Analog output short circuit duration |
Indefinite |
Sec | ||
|
TAMB |
Ambient operating temperature |
- 55 |
85 |
°C | |
|
TSTOR |
Storage temperature |
- 65 |
150 |
°C | |
|
TJ |
Junction temperature |
150 |
°C | ||
|
TVPS |
Vapor phase soldering (one minute) |
220 |
°C |
CH7013B-DF-TR
PDF/DataSheet Download
