CIP3250A

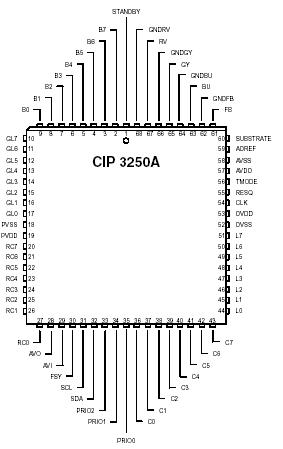

Pinout




Specifications

Symbol	Parameter	Min.	Max.	Unit
TA	Ambient Temperature	0	65
TS	Storage Temperature	-40	125
VSUP	Supply Voltage, all Supply Inputs	0.3	6	V
VI	Input Voltage, all Inputs	0.3	VSUP+0.3	V
VO	Output Voltage, at Outputs PRIO, SDA, and SCL	0.3	VSUP+0.3	V
VO	Output Voltage, at Outputs GL, RC, B, and AVO	0.3	VEXT+0.3	V

Description

The CIP 3250A is a new CMOS IC that contains on a single chip the entire circuitry to interface analog YUV/ RGB/Fast Blank to a digital YUV system. CIP 3250A Fast Blank signal is used to control a soft mixer between the digitized RGB and an external digital YUV source. The CIP supports various output formats such as YUV 4:1:1/4:2:2 or RGB 4:4:4.

Together with the DIGIT 3000 (e.g. VPC 32xxA) or DIGIT 2000 (e.g. DTI 2250), CIP 3250A interface to a TV-scanrate conversion circuit and/or multi-media frame buffer can be obtained.
