Part Number: CL432



MFG: SG8



D/C: 2005+

Description: Calogic's CL432 is a 3-terminal Adjustable Shunt Regulator highly accurate 1.25V bandgap reference with a 0.5% toleranc...


Urgent Purchase

CL432 General Description


Calogic's CL432 is a 3-terminal Adjustable Shunt Regulator highly accurate 1.25V bandgap reference with a 0.5% tolerance. The device offers thermal stability, wide operating current (100mA) and an extended temperature range of 0o to 105oC for operation in power supply applications. The CL432 offers a wide operating voltage range of up to 18V and is an excellent choice for voltage reference requirements in an isolated feedback circuit for 3.0V to 3.3V switching mode power supplies. The tight tolerance guarantees a lower design cost for the power supply manufacturer by virtually eliminating the need for an extra power supply manufacturing process of the power supply.
The device is housed in several package options to meet the designers criteria.

CL432 Maximum Ratings

SYMBOL PARAMETER RATING UNITS
VKA Cathode-Anode Reverse Breakdown 18 V
IAK Anode-Cathode Forward Current 1 A
IKA Operating Cathode Current 100 mA
IREF Reference Input Current 1 mA
PD Continuous Power at 25
TO-92
8L SOIC
SOT-23
SOT-89		 775
750
1000
200		 mW
mW
mW
mW
TJ Junction Temperature 150
TSTG Storage Temperature 65 to 150
TL Lead Temperature, Soldering 10 Seconds 300

CL432 Features

` Temperature-Compensated: 50ppm/
` Trimmed 0.5% Bandgap Reference
` Internal Amplifier with 150mA Capability
` Nominal Temperature Range Extended to 105
` Low Frequency Dynamic Output Impedance: < 150m
` Low Output Noise

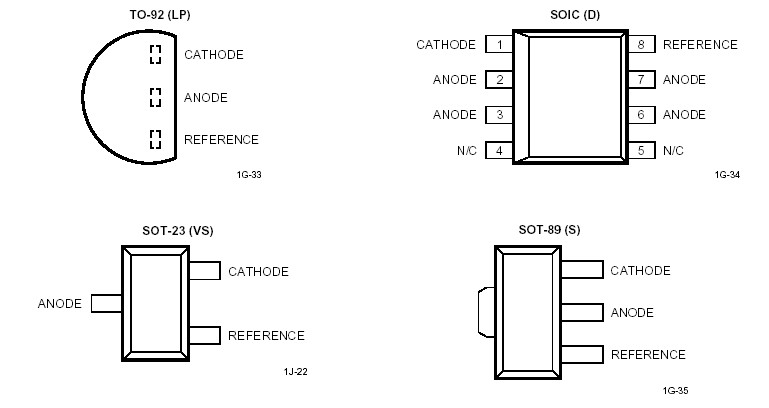

CL432 Connection Diagram

CL432 Connection Diagram

CL432 datasheet

CL432
PDF/DataSheet Download
