Five Points

Part Number: CLC005

MFG: 'NS

Package Cooled: 07+

D/C: 'SOP8

Description: National's Comlinear CLC005 is a monolithic, high-speed cable driver designed for the ITU-T G.703 serial digital data t...

CLC005 General Description

National's Comlinear CLC005 is a monolithic, high-speed cable driver designed for the ITU-T G.703 serial digital data transmission standard. The CLC005 drives 75W transmission lines (Belden 8281 or equivalent) at data rates from DC to over 622 Mbps. Output signal waveforms produced by the CLC005 comply with G.703 specifications. Controlled output rise and fall times (650 ps typical) minimize transitioninduced jitter. The output voltage swing, typically 2.0V, set by an accurate, low-drift internal bandgap reference, delivers a 1.0V swing to back-matched and terminated 75W cable. Output swing is adjustable from 0.7 Vp-p to 2.2 Vp-p using external resistors.

The CLC005's class AB output stage consumes less power than other designs, 185 mW with both outputs terminated, and requires no external bias resistors. The differential inputs accept a wide range of digital signals from 200 mVp-p to G.703 levels within the specified common-mode limits. All this make the CLC005 an excellent general purpose high speed driver for digital applications.
The CLC005 is powered from a single +5V or +5.2V supply and comes in an 8-pin SOIC package.

CLC005 Maximum Ratings

Supply Voltage                                                             6V
Output Current                                                       30 mA
Maximum Junction Temperature                            +125
Storage Temperature Range                   −65 to +150
Lead Temperature
(Soldering 10 seconds)                                         +300
ESD Rating (Human Body Model)                             1000V
Package Thermal Resistance
_JA Surface Mount AJE                                        125/W
_JC Surface Mount AJE                                     105°C/W
Reliability Information
Transistor count                                                         72
MTTF                                                                   254 Mhr

CLC005 Features

·No external pull-down resistors
·Adjustable output amplitude
·Differential input and output
·Low power dissipation
·Single +5V or −5.2V supply

CLC005 Typical Application

·ITU-T G.703, Sonet/SDH, and ATM compatible driver
·Digital routers and distribution amplifiers
·Coaxial cable driver for digital transmission line
·Twisted pair driver
·Buffer applications

CLC005 Connection Diagram

CLC005 datasheet

CLC005
PDF/DataSheet Download

Datasheet: CLC005
File Size: 341456 KB
Manufacturer: NSC [National Semiconductor]
Click here to Download

·CLC001
NSC [National Semiconductor]
Serial Digital Cable Driver with Adjustable Outputs
159265 KB
·CLC001AJE
NSC [National Semiconductor]
Serial Digital Cable Driver with Adjustable Outputs
159265 KB
·CLC002
NSC [National Semiconductor]
SMPTE 292M / 259M Serial Digital Cable Driver
457189 KB
·CLC002MA
NSC [National Semiconductor]
SMPTE 292M / 259M Serial Digital Cable Driver
457189 KB
·CLC005AJE
NSC [National Semiconductor]
ITU-T G.703 Cable Driver with Adjustable Outputs
341456 KB
·CLC006
NSC [National Semiconductor]
Serial Digital Cable Driver with Adjustable Outputs
194521 KB
·CLC006AJE
NSC [National Semiconductor]
Serial Digital Cable Driver with Adjustable Outputs
194521 KB
·CLC007
NSC [National Semiconductor]
Serial Digital Cable Driver with Dual Complementary Outputs
139692 KB

Related Part Number

CLC005 Relative Products

CLC002
The CLC002 SMPTE 292M / 259M serial digital cable driver is a monolithic, high-speed cable driver designed for use in SMPTE 292M / 259M serial digital video and ITU-T G.703 serial digital data transmission applications. The CLC002 drives 75 transmission line...

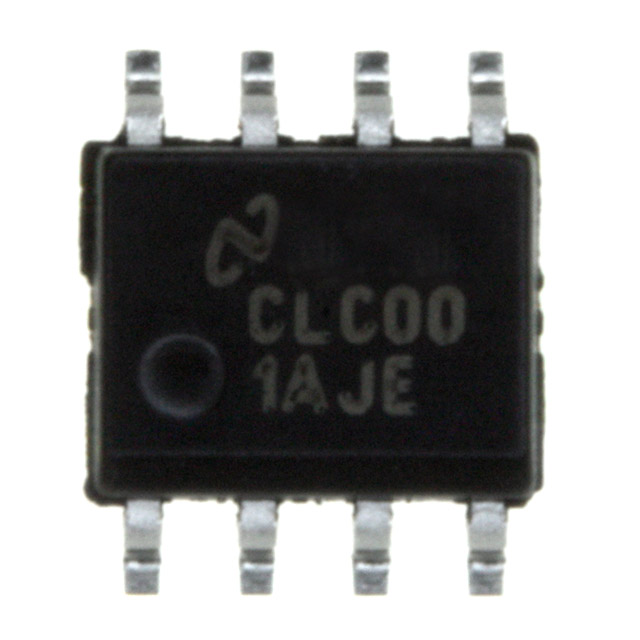

CLC001AJE-TR13/NOPB
