Part Number: CLC011

MFG: N/A

Package Cooled: PLCC

Description: National's Comlinear CLC011, Serial Digital Video Decoder, decodes and descrambles SMPTE 259M standard Serial Digital V...

CLC011 General Description

National's Comlinear CLC011, Serial Digital Video Decoder, decodes and descrambles SMPTE 259M standard Serial Digital Video datastreams with serial clock into 10-bit parallel words and a corresponding word-rate clock. SMPTE 259M standard parallel data is encoded and scrambled using a 9-bit shift register and is also converted from NRZ to NRZI. The CLC011 restores the original parallel data by reversing the encoding process. The CLC011 also extracts timing information embedded in the SDV data. These reserved code words, known as Timing Reference Signals (TRS), indicate the start and end of each active video line. By decoding the TRS, the CLC011 correctly identifies the word boundaries of the encoded input data. Detection of the TRS reserved codes is indicated by low-true signals at the TRS and End of Active Video (EAV) outputs.

The CLC011's design using current-mode logic (CML) reduces noise injection into the power supply thereby easing board layout and interfacing. The CMOS compatible outputs, which feature controlled rise and fall times, may be set for either 3.3V or 5V swings with the VDP and VCP inputs.

The CLC011 Serial Digital Video Decoder, CLC014 Adaptive Cable Equalizer and the CLC016 Data Retiming PLL combine to provide a complete Serial Digital Video receiver system.

The CLC011 is packaged in a 28-pin PLCC.

CLC011 Maximum Ratings

Supply Voltage (V_CCV_EE)                                 +6V
Storage Temperature Range             −65 to +150
Junction Temperature                                      +150
ESD Rating (HBM)
PDx                                                                    500V
other                                                                     2kV
Package Thermal Resistance
_JA 28-Pin PLCC                                               85/W
_JC 28-Pin PLCC                                               35/W
Reliability Information
Transistor Count                                                  3076

CLC011 Features

·Data decoding and deserializing
·CLC011B operates to 360Mbps
·CLC011A operates to 300Mbps
·Low noise injection to power supplies
·Single +5V or −5.2V supply operation
·Output levels programmable for interface to 5V or 3.3V logic
·Low power
·Low cost

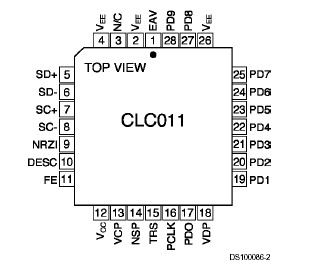

CLC011 Connection Diagram

CLC011 datasheet

CLC011
PDF/DataSheet Download

Datasheet: CLC011
File Size: 1116741 KB
Manufacturer: NSC [National Semiconductor]
Click here to Download
