CLC532

Features:

12-bit settling (0.01%) - 17ns
Low noise - 32mVrms
High isolation - 80dB @ 10MHz
Low distortion - 80dBc @ 5MHz
Adjustable bandwidth - 190MHz (max)




Application

Infrared system multiplexing
CCD sensor signals
Radar I/Q switching
High definition video HDTV
Test and calibration

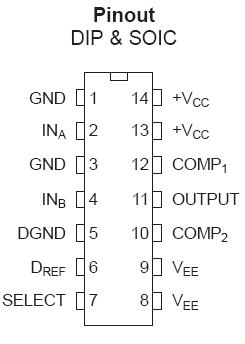

Pinout






Specifications

positive supply voltage (+V_CC) ..............................................-0.5V to +7.0V
negative supply voltage (-V_EE).............................................. +0.5V to -7.0V
differential voltage between any two GND's ...................................200mV
analog input voltage range..................................................... -V_EE to +V_CC
digital input voltage range...................................................... -V_EE to +V_CC
output short circuit duration (output shorted to GND) ......................Infinite
junction temperature...................................................................... +150°C
operating temperature range CLC532AJP/AJE/AIB ............-40°C to +85°C
storage temperature range............................................. -65°C to +150°C
lead solder duration.......................................................... (+300°C) 10 sec
ESD rating ..........................................................................................<500V
transistor count ........................................................................................74

Temperature Min	-40 deg C
Temperature Max	85 deg C
SSBW	190 dB
Channels	2 Channels
Switching Speed	5 ns
Crosstalk Rejection	80 dB
Settling Time	17 ns
Tsettling Conditions	to 0.01%
HD 2nd	80 dB
HD 3rd	86 dB
Supply Voltage	10 Volt
Supply Current	23 mA
Function	Analog Multiplexer
View Using Catalog

Description

The CLC532 is a high-speed 2:1 multiplexer with active input and output stages. The CLC532 also employs a closed-loop design which dramatically improves accuracy. This monolithic device is constructed using an advanced high-performance bipolar process.

The CLC532 has been specifically designed to provide settling times of 17ns to 0.01%. This, coupled with the adjustable noise-bandwidth, makes the CLC532 an ideal choice for infrared and CCD imaging systems. Channel-to-channel isolation is better than 80dB @ 10MHz. Low distortion (80dBc) and spurious signal levels make the CLC532 a very suitable choice for both I/Q processors and receivers.

The CLC532 is offered over both the industrial and military temperature ranges. The Industrial versions, CLC532AJP\AJE\AID, are specified from -40°C to +85°C and are packaged in 14-pin plastic DIP's, 14-pin SOIC's and 14-pin Side-Brazed packages. The extended temperature versions, CLC532A8B/A8D/A8L-2, are specified from -55°C to +125°C and are packaged in a 14-pin hermetic DIP and 20-terminal LCC packages. (Contact factory for LCC and CERDIP availability.)
