CLM385-1.2

Features:

Tight Tolerance. . . . . . . . . . . . . . . . . . . . . . . . . _ 1% _2%
Operating Current. . . . . . . . . . . . . . . . . . . .  10A - 20mA
Dynamic Impedance . . . . . . . . . . . . . . . . . . . . . . . . . .  1
Low Temperature Coefficient

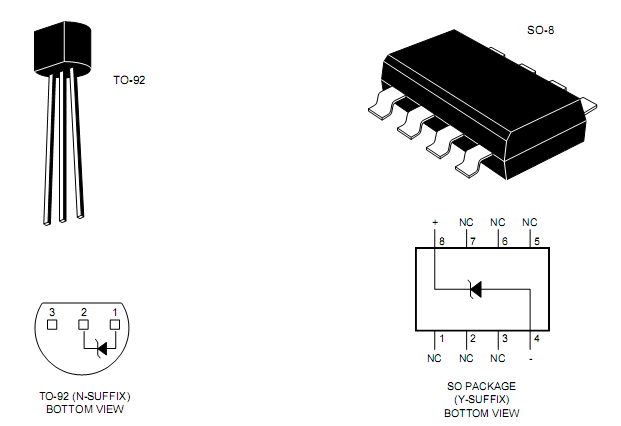

Pinout




Specifications

Reverse Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  30mA
Forward Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  10mA
Operating Temperature Range
CLM285-1.2. . . . . . . . . . . . . . . . . . . . . . . .  -40to +85
CLM385-1.2. . . . . . . . . . . . . . . . . . . . . . . . . .  0to +70
Storage Temperature. . . . . . . . . . . . . . . . . .  -55to +150
Soldering Information
TO-92 Package (10 sec.). . . . . . . . . . . . . . . . . . . . .   260
SO Package:  Vapor Phase (60 sec.). . . . . . . . . .   215
Infrared (15 sec.). . . . . . . . . . . . . .   220



Description

The CLM285 / 385 - 1.2 are micropower 2 terminal band- gap voltage regulator diodes.  Operating over a wide current range of 10?A to 20mA with low dynamic  impedance and stable temperature characteristics.  Calogic utilizes on-chip trimming to provide tight voltage tolerances.
The devices are excellent in portable meters, regulators or general purpose analog circuitry with battery life approaching shelf life.
