Part Number: CLP270M



MFG: STM

Package Cooled: SOP-10

D/C: 06+

Description: The CLP270M is designed to protect telecommunication equipment.It provides botha transient overvoltage protection and a...


Urgent Purchase

CLP270M General Description


The CLP270M is designed to protect telecommunication equipment.It provides botha transient overvoltage protection and an overcurrent protection.
ItishousedinaPowerSO-10TM package.

CLP270M Maximum Ratings

Symbol
Parameter
Test Conditions
Value
Unit
IPP Line to GND peak surge
current		 10/1000ms (open circuit voltage
wave shape 10/1000ms)
100
A
5/310ms (open circuit voltage
wave shape 10/700ms)
150
2/10ms (open circuit voltage
wave shape)
500
ITSM Non repetitive surge peak
on-state current (TIP or
RING versus Ground)

F = 50 Hz		 tp = 20 ms
60
A
tp = 200 ms
30
A
tp = 2 s
15
A
Tstg
Tj		 Storage temperature range
Maximum junction temperature
- 40to+150
150
°C
TL Maximum lead temperature for soldering during 10 s
260
°C

CLP270M Features

DUALBIDIRECTIONALPROTECTIONDEVICE.
HIGHPEAKPULSECURRENT:
Ipp=100A(10/1000 s SURGE)
Ipp=500A(2/10 s SURGE)
MAX.VOLTAGEATSWITCHING-ON:380V
MIN.CURRENTATSWITCHING-OFF:150mA
FAILURESTATUSOUTPUTPIN

CLP270M Typical Application

Anytelecomequipmentsubmittedtotransient
overvoltagesandlightningstrikessuchas:
AnalogandISDNlinecards
PABX
MainDistributionFrames
Primaryprotectionmodules

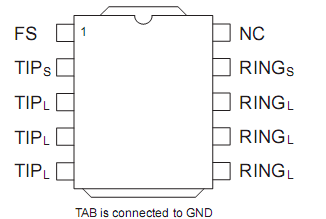

CLP270M Connection Diagram

CLP270M Connection Diagram

CLP270M datasheet

CLP270M
PDF/DataSheet Download

  • Datasheet: CLP270M
  • File Size: 377456 KB
  • Manufacturer: STMICROELECTRONICS [STMicroelectronics]
  • Click here to Download
