CLY15
-
Suppliers
DataSheet
General Description
CLY15 Maximum Ratings
Symbol |
Unit |
||
| Drain-source voltage | VDS |
9 |
V |
| Drain-gate voltage | VDG |
12 |
V |
| Gate-source voltage | VGS |
-6 |
V |
| Drain current | ID |
5 |
A |
| Channel temperature | TCh |
150 |
|
| Storage temperature | Tstg |
-55...+150 |
|
| Total power dissipation (Ts < 80°C) Ts: Temperature at soldering point |
Ptot |
4.9 |
W |
CLY15 Features
* Power amplifier for mobile phones
* For frequencies from 400 MHz to 2.5 GHz
* Operating voltage range: 2.7 to 6 V
* POUT at VD=3V, f=1.8 GHz typ. 31.5 dBm
* Efficiency better 50%
* For frequencies from 400 MHz to 2.5 GHz
* Operating voltage range: 2.7 to 6 V
* POUT at VD=3V, f=1.8 GHz typ. 31.5 dBm
* Efficiency better 50%

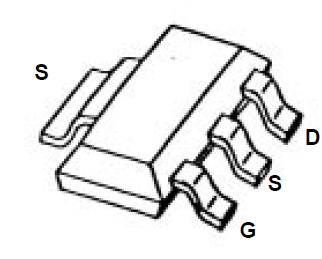

CLY15 Connection Diagram
CLY15
PDF/DataSheet Download
- Datasheet: CLY15
- File Size: 60435 KB
- Manufacturer: SIEMENS [Siemens Semiconductor Group]
- Click here to Download
