CLY2
-
Suppliers
DataSheet
General Description
CLY2 Maximum Ratings
| Symbol | Unit | ||
| Drain-source voltage | VDS | 9 | V |
| Drain-gate voltage | VDG | 12 | V |
| Gate-source voltage | VGS | -6 | V |
| Drain current | ID | 600 | mA |
| Channel temperature | TCh | 150 | |
| Storage temperature | Tstg | -55...+150 | |
| Total power dissipation (TS < 50°C) 2) | Ptot | 900 | mW |
CLY2 Features
* Power amplifier for mobile phones
* For frequencies up to 3 GHz
* Operating voltage range: 2 to 6 V
* POUT at VD=3V, f=1.8GHz typ. 23.5 dBm
* High efficiency better 55 %
* For frequencies up to 3 GHz
* Operating voltage range: 2 to 6 V
* POUT at VD=3V, f=1.8GHz typ. 23.5 dBm
* High efficiency better 55 %

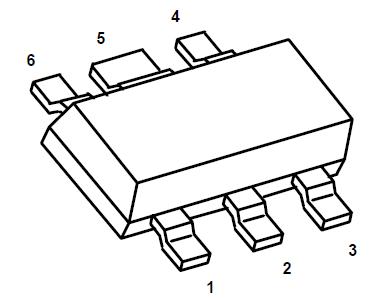

CLY2 Connection Diagram
CLY2
PDF/DataSheet Download
- Datasheet: CLY2
- File Size: 53219 KB
- Manufacturer: SIEMENS [Siemens Semiconductor Group]
- Click here to Download
