CM1086

Features:

·Three Terminal Adjustable or Fixed Voltages: 2.5V, 3.3V, and adjustable.
·Output Current of 1.5A
·Reverse Battery Protection
·Fast Transient Response
·Short Circuit Protection
·Internal Thermal Overload Protection
· TO-263 and TO-252 package available



Application

·Power Supplies
·Computer Add-On Cards
·Other Applications Requiring Low Dropout Voltage Over Rated Current

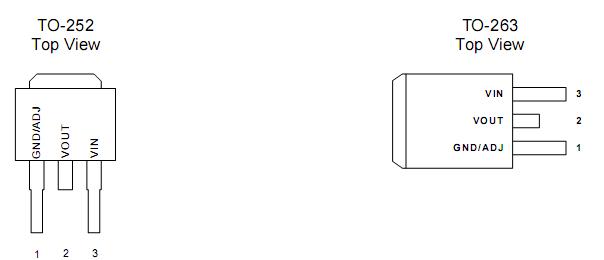

Pinout




Specifications

Input Voltage......................  +13V
Operating Junction Temperature Range, T_J....0 to +150
Storage Temperature............ .-65 to +150
Lead Temperature (10 sec.)............... 260

Description

The CM1086 is a high performance low dropout regulator rated for 1.5A output current with fixed 2.5V/3.3V and adjustable output. It is designed for use in applications requiring low dropout characteristics over the rated current range.

CM1086 chip trimming adjusts the reference voltage to 1%. These features are ideal for low voltage microprocessor applications requiring a regulated 2.5V to 3.6V power supply.

In addition, the CM1086 provides the device protections including over current and thermal shutdown. Also, reverse battery protection scheme limits the reverse current when the input voltage falls below the output.
