CM2730 General Description
The CM2730 dual LDO family are positive linear voltage regulators developed utilizing CMOS technology. CM2730 contains two LDOs, one with pre-set output voltage (master LDO1), the other with adjustable output voltage (slave LDO2). Each LDO owns its input voltage, bandgap reference voltage, and protection circuit, which reduce noise and cross talk between two LDOs. This dual LDO family is featured low quiescent current (60µA typ.), low dropout voltage, and high output voltage accuracy. Built-in low on-resistance transistor provides low dropout voltage and large output current. 2.2µF or greater can be used as an output capacitors.
The PTSSOP-8 package is recommended for configuring portable devices and large current application, respectively.
These robust devices are designed to prevent device failure under the worst operation condition with both Thermal Shutdown and Current Fold-back.
CM2730 Maximum Ratings
Input Voltage .................. +7V
Output Current ........... PD / (VIN - Vo)
Output Voltage ........ GND-0.3V to VIN+0.3V
ESD Classification ................ B
Ambient Temperature Range (TA) ..... -40 to +85
Junction Temperature Range ....... -40 to +125
VIN1 VIN2 < 0.8V
CM2730 Features
Very Low Shutdown Current < 2.0µA
Very Low Dropout Voltage: 300mV @ 300mA
Low Current Consumption: Typ. 60µA, Max. 70µA
Output Voltage: master LDO1 fixed at 2.5V or 3.3V, and the slave LDO2 adjustable voltage
Output Current Range: 0mA ~ 300mA per LDO
PTSSOP-08 Package with Power Pad
High Accuracy Output Voltage: +/- 1.5%
Input Range of 2.6V to 7.0V
Independent Thermal Shutdown
Power Sequence
Power Good Output Function
Independent Bandgap
Current Limiting
Factory Pre-set Output Voltages
Short Circuit Current Fold-Back
Low Temperature Coefficient
CM2730 Typical Application
Battery-powered devices
Personal communication devices
Home electric/electronic appliances
PC peripherals

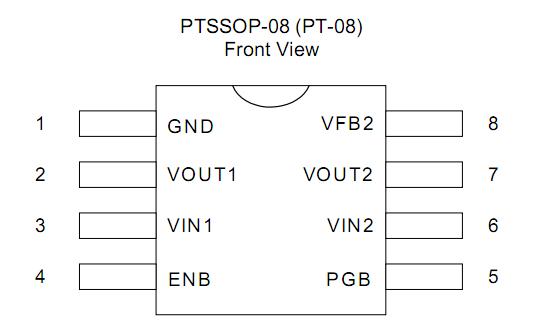

CM2730 Connection Diagram
