Purchase CM2830, In-stock CM2830 From SeekIC.
MFG:CHIAMPION D/C:05+
Part Number: CM2830
MFG: CHIAMPION
D/C: 05+
Description: The CM2830/CM2830A family is a positive voltage linear regulator developed utilizing CMOS technology featured low quies...
- Table of contents:
CM2830
-
Suppliers
DataSheet
General Description
CM2830 General Description
The CM2830/CM2830A family is a positive voltage linear regulator developed utilizing CMOS technology featured low quiescent current (30µA typ.), low dropout voltage, and high output voltage accuracy. Built-in low on-resistance transistor provides low dropout voltage and large output current. A 2.2µF or greater can be used as an output capacitor.
The SOT-23-3, SOT-23-5, and TO-92 miniaturized package and the SOT-89 package are recommended for configuring portable devices and large current application, respectively.
These robust devices are designed to prevent device failure under the worst operation condition with both Thermal Shutdown and Current Fold-back.
CM2830 Maximum Ratings
Input Voltage .................. +7V
Output Current ........... PD / (VIN - Vo)
Output Voltage ........ GND-0.3V to VIN+0.3V
ESD Classification ................ B
Ambient Temperature Range (TA) ..... -40 to +85
Junction Temperature Range ....... -40 to +125
Output Current ........... PD / (VIN - Vo)
Output Voltage ........ GND-0.3V to VIN+0.3V
ESD Classification ................ B
Ambient Temperature Range (TA) ..... -40 to +85
Junction Temperature Range ....... -40 to +125
CM2830 Features
Very Low Dropout Voltage
Low Current Consumption: Typ. 30µA, Max. 35µA
Output Voltage: 1.5V, 1.8V, 1.9V, 2.0V, 2.2V, 2.5V, 2.7V, 2.8V, 2.9V, 3.0V, 3.3V, 3.5V, 3.6V, and 3.8V
High Accuracy Output Voltage: +/- 1.5%
Guaranteed 300mA Output
Input Range of 2.8V to 7.0V
Thermal Shutdown
Current Limiting
Compact Package: TO-92, SOT-23-3, SOT-23-5, and SOT-89
Factory Pre-set Output Voltages
Short Circuit Current Fold-Back
Low Temperature Coefficient
Low Current Consumption: Typ. 30µA, Max. 35µA
Output Voltage: 1.5V, 1.8V, 1.9V, 2.0V, 2.2V, 2.5V, 2.7V, 2.8V, 2.9V, 3.0V, 3.3V, 3.5V, 3.6V, and 3.8V
High Accuracy Output Voltage: +/- 1.5%
Guaranteed 300mA Output
Input Range of 2.8V to 7.0V
Thermal Shutdown
Current Limiting
Compact Package: TO-92, SOT-23-3, SOT-23-5, and SOT-89
Factory Pre-set Output Voltages
Short Circuit Current Fold-Back
Low Temperature Coefficient
CM2830 Typical Application
Battery-powered devices
Personal communication devices
Home electric/electronic appliances
PC peripherals
Personal communication devices
Home electric/electronic appliances
PC peripherals

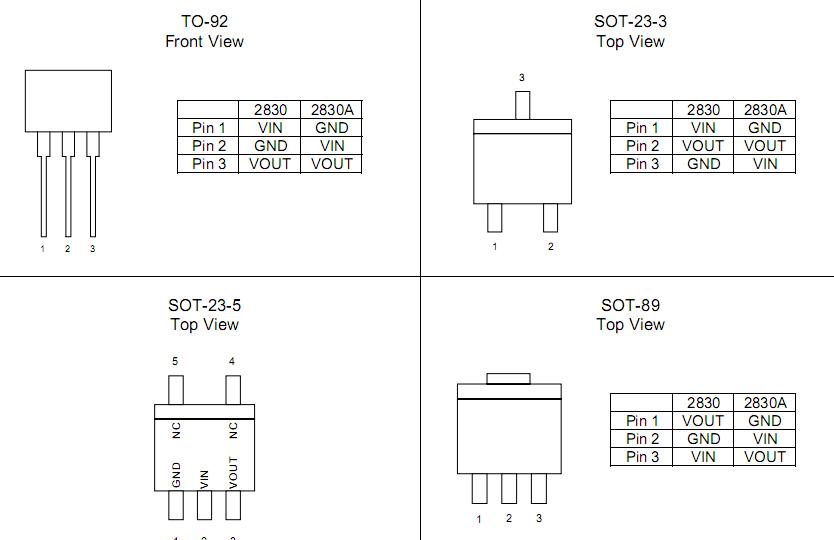

CM2830 Connection Diagram
CM2830
PDF/DataSheet Download
- Datasheet: CM2830
- File Size: 538627 KB
- Manufacturer: ETC [ETC]
- Click here to Download
- ·CM2009
- CALMIRCO [California Micro Devices Corp]
- VGA Port Companion Circuit
- 119228 KB
- ·CM2009-00QR
- CALMIRCO [California Micro Devices Corp]
- VGA Port Companion Circuit
- 119228 KB
- ·CM2009-00QS
- CALMIRCO [California Micro Devices Corp]
- VGA Port Companion Circuit
- 119228 KB
- ·CM2009-01QR
- CALMIRCO [California Micro Devices Corp]
- VGA Port Companion Circuit
- 119228 KB
- ·CM2009-01QS
- CALMIRCO [California Micro Devices Corp]
- VGA Port Companion Circuit
- 119228 KB
- ·CM2009-02QR
- CALMIRCO [California Micro Devices Corp]
- VGA Port Companion Circuit
- 119228 KB
- ·CM2009-02QS
- CALMIRCO [California Micro Devices Corp]
- VGA Port Companion Circuit
- 119228 KB
- ·CM200DU-12F
- POWEREX [Powerex Power Semiconductors]
- Trench Gate Design Dual IGBTMOD⑩ 200 Amperes/600 Volts
- 109487 KB
CM2830 Relative Products

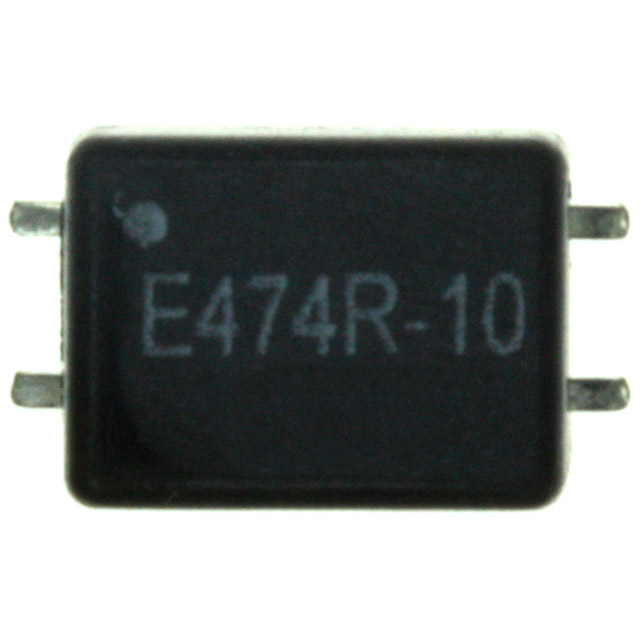

CM2824E702R-10
