Part Number: CM300DY-24H



MFG: MITSUBISHI



D/C: 2IGBT: 300A1200V

Description: Powerex IGBTMODTM Modules are designed for use in switching applications. Each module consists of two IGBT T...


Urgent Purchase

CM300DY-24H General Description


Powerex IGBTMODTM Modules are designed for use in switching applications. Each module consists of two IGBT Transistors in a half-bridge configuration with each transistor having a reverse- connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.

CM300DY-24H Maximum Ratings

Ratings Symbol CM900HB-90H Units
Junction Temperature Tj -40 to 150 °C
Storage Temperature Tstg -40 to 125 °C
Collector-Emitter Voltage (G-E SHORT) VCES 1200 Volts
Gate-Emitter Voltage VCES ±20 Volts
Collector Current IC 300 Amperes
Peak Collector Current ICM 600* Amperes
Diode Forward Current IF 300 Amperes
Diode Forward Surge Current IFM 600* Amperes
Power Dissipation Pc 2100 Watts
Mounting Torque, M6 Terminal Screws - 26 in-lb
Mounting Torque, M6 Mounting Screws - 26 in-lb
Module Weight (Typical) - 500 Grams
V Isolation Viso 2500 Volts

CM300DY-24H Features

·Low Drive Power
·Low VCE(sat)
·Discrete Super-Fast Recovery (135ns) Free-Wheel Diode
·High Frequency Operation (20-25kHz)
·Isolated Baseplate for Easy Heat Sinking

CM300DY-24H Typical Application

·AC Motor Control
·Motion/Servo Control
·UPS
·Welding Power Supplies
·Laser Power Supplies

CM300DY-24H datasheet

CM300DY-24H
PDF/DataSheet Download

  • Datasheet: CM300DY-24H
  • File Size: 57084 KB
  • Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
  • Click here to Download

Find CM300DY-24H Suppliers

  • ·CM3002
  • CALMIRCO [California Micro Devices Corp]
  • Micropower 1.0A Low Dropout CMOS Regulators
  • 360600 KB
  • CM3002 Datasheet Download
  • ·CM3002-15
  • CALMIRCO [California Micro Devices Corp]
  • Micropower 1.0A Low Dropout CMOS Regulators
  • 360600 KB
  • CM3002-15 Datasheet Download
  • ·CM3002-15SA
  • CALMIRCO [California Micro Devices Corp]
  • Micropower 1.0A Low Dropout CMOS Regulators
  • 360600 KB
  • CM3002-15SA Datasheet Download
  • ·CM3002-15SF
  • CALMIRCO [California Micro Devices Corp]
  • Micropower 1.0A Low Dropout CMOS Regulators
  • 360600 KB
  • CM3002-15SF Datasheet Download
  • ·CM3002-18
  • CALMIRCO [California Micro Devices Corp]
  • Micropower 1.0A Low Dropout CMOS Regulators
  • 360600 KB
  • CM3002-18 Datasheet Download
  • ·CM3002-18SA
  • CALMIRCO [California Micro Devices Corp]
  • Micropower 1.0A Low Dropout CMOS Regulators
  • 360600 KB
  • CM3002-18SA Datasheet Download
  • ·CM3002-18SF
  • CALMIRCO [California Micro Devices Corp]
  • Micropower 1.0A Low Dropout CMOS Regulators
  • 360600 KB
  • CM3002-18SF Datasheet Download
  • ·CM3002-25
  • CALMIRCO [California Micro Devices Corp]
  • Micropower 1.0A Low Dropout CMOS Regulators
  • 360600 KB
  • CM3002-25 Datasheet Download

Related Part Number

CM300DY-24H Relative Products

  • CM300DY-24A

    CM300DY-24A

    IGBT MOD DUAL 1200V 300A A SER

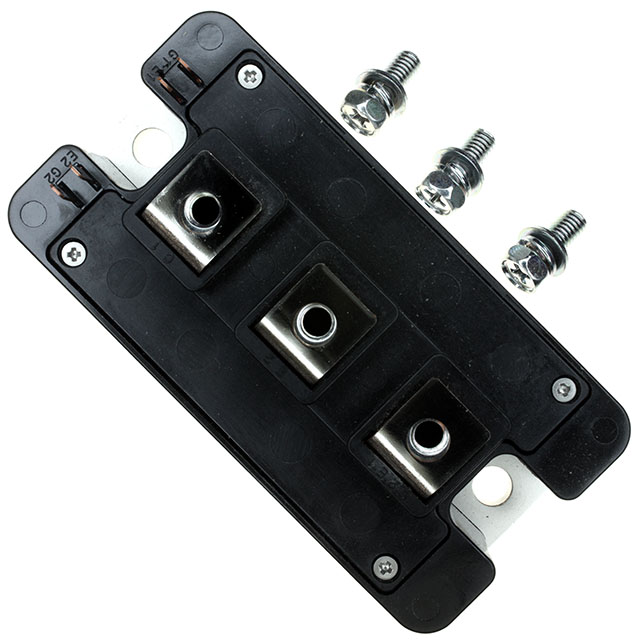

  • CM300DY-12NF
