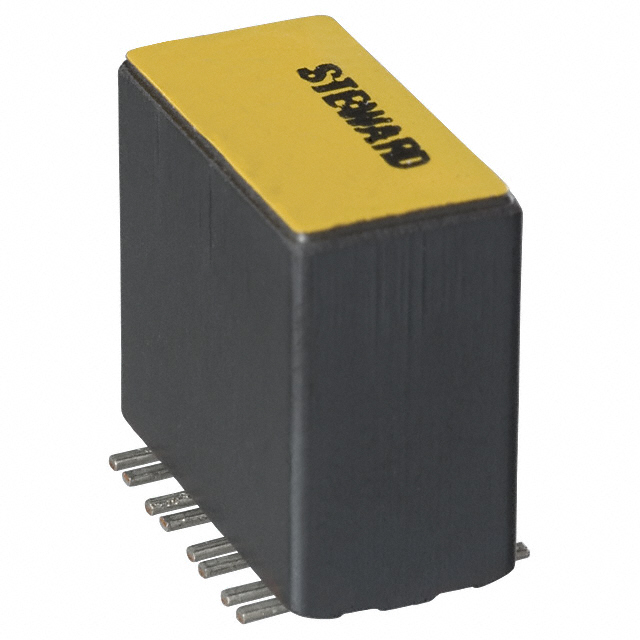

See larger image

SeekIC No. : 003447008 Detail

CM6032V301R-00: CHOKE ARRAY COM MODE 300 OHM SMD

CM6032V301R-00 Data Sheet

Get Latest Price

Part Number:: CM6032V301R-00
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

CM600DU-24F evaluate
US $262.71 - 262.71 / Piece

IGBT MOD DUAL 1200V 600A F SER
CM600DU-24NF evaluate
US $224.72 - 252.81 / Piece

IGBT MOD DUAL 1200V 600A NF SER
CM600DU-24NFH evaluate
US $218.22 - 218.22 / Piece

IGBT MOD DUAL 1200V 600A NFH SER

Product Details

Quick Details

Series:	CM	Manufacturer:	Laird-Signal Integrity Products
Filter Type:	Power Line	Number of Lines:	8
Inductance:	-	Current:	8A
DC Resistance (DCR):	10 mOhm Max	Impedance:	300 Ohm
Mounting Type:	Surface Mount	Maximum Operating Temperature :	+ 125 C
Size / Dimension:	0.600" L x 0.320" W (15.24mm x 8.13mm)	Height (Max):	0.580" (14.73mm)
Package / Case:	Vertical, 16 Flat Lead	Operating Temperature:	-55°C ~ 125°C

Description

Inductance: -
Mounting Type: Surface Mount
Impedance: 300 Ohm
Filter Type: Power Line
DC Resistance (DCR): 10 mOhm Max
Operating Temperature: -55°C ~ 125°C
Current: 8A
Number of Lines: 8
Series: CM
Manufacturer: Laird-Signal Integrity Products
Package / Case: Vertical, 16 Flat Lead
Packaging: Cut Tape (CT)
Height (Max): 0.580" (14.73mm)
Size / Dimension: 0.600" L x 0.320" W (15.24mm x 8.13mm)

Parameters:

Technical/Catalog Information	CM6032V301R-00
Vendor	Steward
Category	Filters
Inductance	-
Impedance	300 Ohm
DC Resistance (DCR)	10.00 mOhm Max
Current	8A
Filter Type	Common Mode - 8 Line Array
Mounting Type	Surface Mount
Package / Case	0.600" L x 0.430" W x 0.595" H (15.24mm x 10.92mm x 15.11mm)
Packaging	Tape & Reel (TR)
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	CM6032V301R 00 CM6032V301R00 240 2192 2 ND 24021922ND 240-2192-2
