CMD15-22SRUGC/TR8

LED RED/GREEN CLEAR 1210 SMD

product image

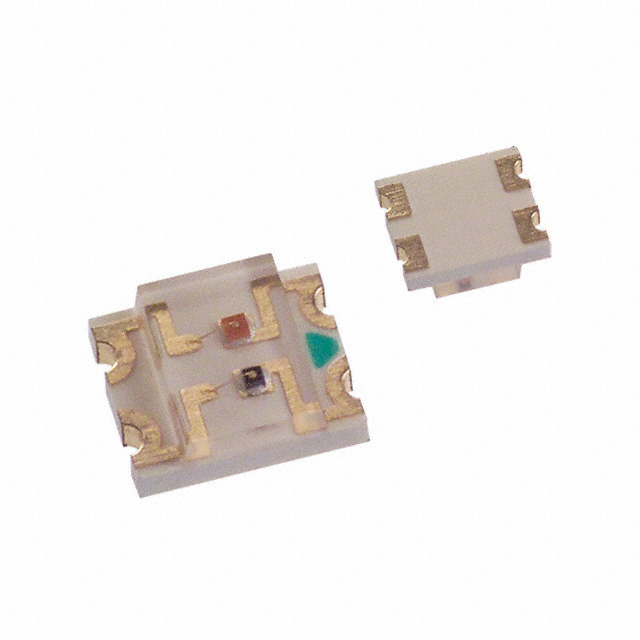

CMD15-22SRUGC/TR8 Picture
See larger image
SeekIC No. : 003613559 Detail

CMD15-22SRUGC/TR8: LED RED/GREEN CLEAR 1210 SMD

CMD15-22SRUGC/TR8 Data Sheet

floor Price/Ceiling Price

US $ .15~.46 / Piece | Get Latest Price
Part Number:
CMD15-22SRUGC/TR8
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~25
  • 25~100
  • 100~250
  • 250~500
  • 500~1000
  • Unit Price
  • $.46
  • $.36
  • $.3
  • $.26
  • $.22
  • $.19
  • $.15
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Chicago Miniature Lighting, LLC
Color: Green, Red Millicandela Rating: 12mcd Green, 15mcd Red
Voltage - Forward (Vf) Typ: 2.1V Green, 1.7V Red Current - Test: 20mA
Wavelength - Dominant: - Supply Current (Max) : 0.0023 mA
Wavelength - Peak: 565nm, 660nm Viewing Angle: -
Lens Type: Clear Lens Style/Size: Rectangle with Flat Top, 2.7mm x 2mm
Package / Case: 1210 (3225 Metric) Size / Dimension: 3.20mm L X 1.50mm W
Height: 1.10mm Mounting Type: Surface Mount

Description

Series: -
Current - Test: 20mA
Lens Type: Clear
Mounting Type: Surface Mount
Packaging: Cut Tape (CT)Alternate Packaging
Wavelength - Dominant: -
Viewing Angle: -
Height: 1.10mm
Package / Case: 1210 (3225 Metric)
Size / Dimension: 3.20mm L X 1.50mm W
Color: Green, Red
Lens Style/Size: Rectangle with Flat Top, 2.7mm x 2mm
Wavelength - Peak: 565nm, 660nm
Voltage - Forward (Vf) Typ: 2.1V Green, 1.7V Red
Manufacturer: Chicago Miniature Lighting, LLC
Millicandela Rating: 12mcd Green, 15mcd Red


Parameters:

Technical/Catalog InformationCMD15-22SRUGC/TR8
VendorCML Innovative Technologies Inc
CategoryOptoelectronics
ColorGreen, Red
Lens Style/SizeRectangle, 2.7mm x 2mm
Millicandela Rating12mcd Green, 15mcd Red
Voltage - Forward (Vf) Typ2.1V Green, 1.7V Red
Wavelength - Dominant565nm, 660nm
Wavelength - Peak565nm, 660nm
Current - Test20mA
Viewing Angle140°
Lens TypeClear
Luminous Flux50 mlm, 62 mlm
Package / Case1206 (3216 metric)
Mounting TypeSurface Mount
PackagingTape & Reel (TR)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names CMD15 22SRUGC TR8
CMD1522SRUGCTR8
L6221115TR ND
L6221115TRND
L6221115TR
