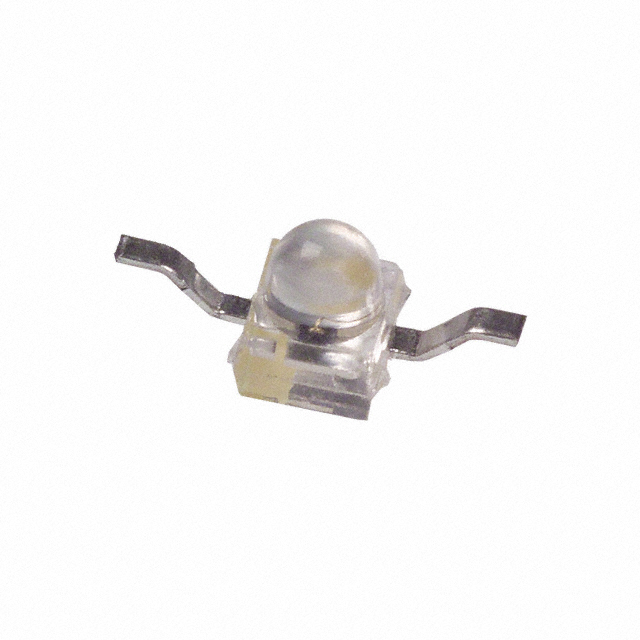

CMD95-21SRC/TR10

Series: -
Current - Test: 20mA
Lens Type: Clear
Mounting Type: Surface Mount
Packaging: Digi-Reel®Alternate Packaging
Color: Red
Wavelength - Dominant: -
Wavelength - Peak: 660nm
Voltage - Forward (Vf) Typ: 1.7V
Viewing Angle: 25°
Millicandela Rating: 100mcd
Lens Style/Size: Round with Domed Top, 1.7mm
Package / Case: 2-SMD, Z-Bend
Size / Dimension: 2.20mm L x 2.10mm W
Manufacturer: Chicago Miniature Lighting, LLC
Height: 2.70mm


Pinout




Specifications

Part Number: CMD95-21SRC/TR10
Serial Number: CMD95
LED Type: SMT
Industry Size: Subminiature
Metric Size: 1.8 mm
Output Color: RED
Epoxy: CLEAR
Peak Wave length (mA): 660
Minimum MCD: 60
Typical MCD: 100
Forward Volt (Typical): 1.7
Forward Volt (Max): 2.4
Rate Current (mA): 20
Viewing Angle (°): 25
Operating Temperature:
Storage Temperature: -0.48
Power Dissipation: 100
Cont Forward Current Max: 30
RoHS Status: Yes


Parameters:

Technical/Catalog Information	CMD95-21SRC/TR10
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	Red
Lens Style/Size	Round, 1.7mm
Millicandela Rating	100mcd
Voltage - Forward (Vf) Typ	1.7V
Wavelength - Dominant	660nm
Wavelength - Peak	660nm
Current - Test	20mA
Viewing Angle	25°
Lens Type	Clear
Luminous Flux	15 mlm
Package / Case	2.2mm x 2.1mm x 2.7mm
Mounting Type	Surface Mount, Bottom Entry
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CMD95 21SRC TR10 CMD9521SRCTR10 L63511TR ND L63511TRND L63511TR
