CMI8768
-
Suppliers
DataSheet
General Description
CMI8768 Features
` The global first 8CH single sound chip with embedded codec saving customer total BOM cost
` Full-duplex 8CH DAC/2CH ADC
` Supports 96K/24bit playback; 48K/16bit recording
` CE level high-quality Signal-to-Noise Ratio (SNR)~ 100dB
` Integrated S/PDIF transmitter supports 44.1k/48k/96KHz sample-rate and 16/24bits resolution
` PCI Rev. 2.2 compliant with bus mastering modes
` Supports the latest Dolby® Digital EX and DTS® ES 6.1/7.1CH DVD soundtrack playback
` Two S/PDIF inputs for optical and coaxial connectors individually
` Built-in earphone buffer at Front-Out pins (32 loading)
` One GPIO (General purpose I/O) support
` External EEPROM Interface for SID R/W purpose
` Supports MPU401 MIDI UART port
` DirectSound™ 3 HW acceleration
` ACPI compliant power down management
` Zoomed Video Port support
` Industrial standard 128-lead QFP package
` Pin-to-Pin compatible with CMI8738 series
` Digital power = 3.3V & 5V, Analog power = 5V
` Full-duplex 8CH DAC/2CH ADC
` Supports 96K/24bit playback; 48K/16bit recording
` CE level high-quality Signal-to-Noise Ratio (SNR)~ 100dB
` Integrated S/PDIF transmitter supports 44.1k/48k/96KHz sample-rate and 16/24bits resolution
` PCI Rev. 2.2 compliant with bus mastering modes
` Supports the latest Dolby® Digital EX and DTS® ES 6.1/7.1CH DVD soundtrack playback
` Two S/PDIF inputs for optical and coaxial connectors individually
` Built-in earphone buffer at Front-Out pins (32 loading)
` One GPIO (General purpose I/O) support
` External EEPROM Interface for SID R/W purpose
` Supports MPU401 MIDI UART port
` DirectSound™ 3 HW acceleration
` ACPI compliant power down management
` Zoomed Video Port support
` Industrial standard 128-lead QFP package
` Pin-to-Pin compatible with CMI8738 series
` Digital power = 3.3V & 5V, Analog power = 5V

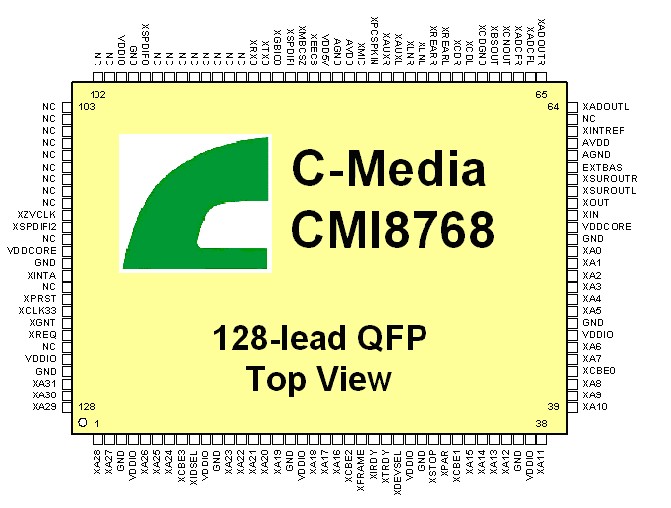

CMI8768 Connection Diagram
CMI8768
PDF/DataSheet Download
- Datasheet: CMI8768
- File Size: 867212 KB
- Manufacturer: ETC [ETC]
- Click here to Download
- ·CMI9761A
- ETC [ETC]
- C-Media CMI9761A / 9761A+ 6 Channel AC97 2.3 Audio Codec
- 548422 KB
CMI8768 Relative Products

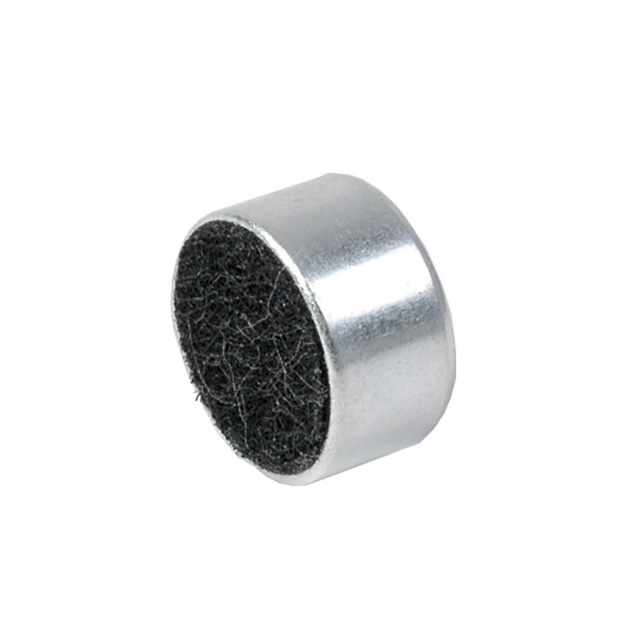

CMI-5247TF-K
