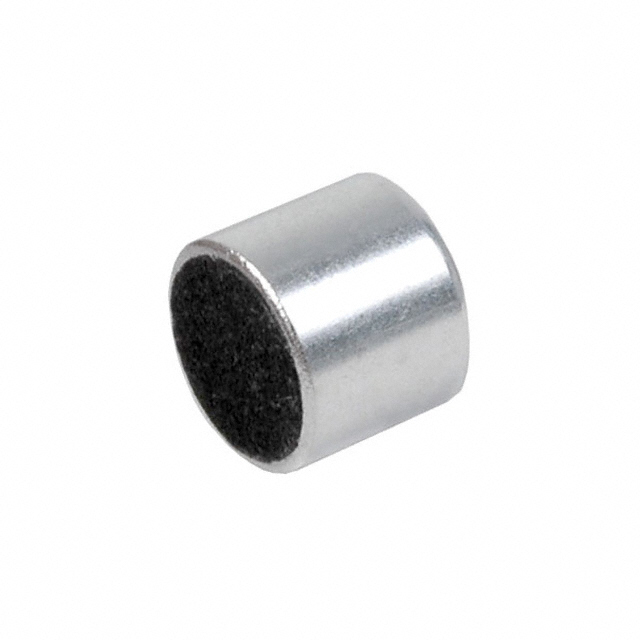

CMR-5054TB-A

Series: -
Manufacturer: CUI Inc
Type: Electret Condenser
Output Type: Analog
Impedance: 2.2 kOhm
Current - Supply: 500µA
Port Location: Top
Seal Rating: None
Shape: Circular
Packaging: Bulk
Termination: Solder Pads
S/N Ratio: 56dB
Voltage - Rated: 2 ~ 10V
Size / Dimension: 6.00mm Dia
Height (Max): 5.20mm
Direction: Noise Cancelling
Frequency Range: 100Hz ~ 10kHz
Sensitivity: -54dB ±3dB


Specifications

directivity: noise cancelling

sensitivity: -54 dB ± 3 dB

sensitivity reduction: -3 dB

operating voltage: 2.0 Vdc

output impedance: 2.2 KΩ

operating frequency: 100 ~ 10,000 Hz

current consumption: 0.5 mA

signal to noise ratio: 56 dBA

operating temperature: -20 ~ +70° C

storage temperature: -20 ~ +70° C

dimensions: ?6.0 x 5.0

weight: 0.30 g

material: Al

termination: terminal type

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	CMR-5054TB-A
Vendor	CUI Inc
Category	Audio Products
Sensitivity	-54dB ±3dB
Voltage - Rated	2 ~ 10V
Current	500A
Type	Electret Condenser
Size / Dimension	Circular - 6mm Dia x 5mm H
Frequency	100Hz ~ 10kHz
S/N Ratio	56dB
Filter Type	-
Impedance	2.2K Ohm
Termination	Solder Pads
Direction	Noise Cancelling
Port Location	Top
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CMR 5054TB A CMR5054TBA 102 1730 ND 1021730ND 102-1730
