Part Number: CMR2U-06









Description: The CENTRAL SEMICONDUCTOR 2.0 Amp Surface Mount Silicon Ultra Fast Recovery Rectifier is a high quality, well construct...


Urgent Purchase

CMR2U-06 General Description


The CENTRAL SEMICONDUCTOR 2.0 Amp Surface Mount Silicon Ultra Fast Recovery Rectifier is a high quality, well constructed, highly reliable component designed for use in all types of commercial, industrial, entertainment, computer, and automotive applications. To order devices on 12mm Tape and Reel (3000/13" Reel), add TR13 suffix to part number.

CMR2U-06 Maximum Ratings

  SYMBOL CMSH2U-01 CMSH2U-02   CMSH2U-04 CMSH2U-06 UNITS
Peak Repetitive Reverse Voltage VRRM 100 200   400 600 V
DC Blocking Voltage VR 100 200   400 600 V
RMS Reverse Voltage VR(RMS) 70 140   280 420 V
Average Forward Current(TA=50°C) IO     2.0     A
Peak Forward Surge Current (8.3ms) IFSM     50     A
Operating and Storage
Junction Temperature TJ,Tstg     -65to+150     °C
Thermal Resistance JA     20     °C/W

CMR2U-06 Features

• LOW COST
• SPECIAL SELECTIONS AVAILABLE
• HIGH RELIABILITY
• SUPERIOR LOT TO LOT CONSISTENCY
• GLASS PASSIVATED CHIP
• "C" BEND CONSTRUCTION PROVIDES STRAIN RELIEF WHEN MOUNTED ON PC BOARD

CMR2U-06 datasheet

CMR2U-06
PDF/DataSheet Download

  • Datasheet: CMR2U-06
  • File Size: 259307 KB
  • Manufacturer: CENTRAL [Central Semiconductor Corp]
  • Click here to Download

Find CMR2U-06 Suppliers

  • ·CMR1-02
  • CENTRAL [Central Semiconductor Corp]
  • GENERAL PURPOSE RECTIFIER 1.0 AMP, 200 THRU 1,000 VOLTS
  • 195304 KB
  • CMR1-02 Datasheet Download
  • ·CMR1-02M
  • CENTRAL [Central Semiconductor Corp]
  • GENERAL PURPOSE RECTIFIER 1.0 AMP, 200 THRU 1,000 VOLTS
  • 88927 KB
  • CMR1-02M Datasheet Download
  • ·CMR1-04
  • CENTRAL [Central Semiconductor Corp]
  • GENERAL PURPOSE RECTIFIER 1.0 AMP, 200 THRU 1,000 VOLTS
  • 195304 KB
  • CMR1-04 Datasheet Download
  • ·CMR1-04M
  • CENTRAL [Central Semiconductor Corp]
  • GENERAL PURPOSE RECTIFIER 1.0 AMP, 200 THRU 1,000 VOLTS
  • 88927 KB
  • CMR1-04M Datasheet Download
  • ·CMR1-06
  • CENTRAL [Central Semiconductor Corp]
  • GENERAL PURPOSE RECTIFIER 1.0 AMP, 200 THRU 1,000 VOLTS
  • 195304 KB
  • CMR1-06 Datasheet Download
  • ·CMR1-06M
  • CENTRAL [Central Semiconductor Corp]
  • GENERAL PURPOSE RECTIFIER 1.0 AMP, 200 THRU 1,000 VOLTS
  • 88927 KB
  • CMR1-06M Datasheet Download
  • ·CMR1-10
  • CENTRAL [Central Semiconductor Corp]
  • GENERAL PURPOSE RECTIFIER 1.0 AMP, 200 THRU 1,000 VOLTS
  • 195304 KB
  • CMR1-10 Datasheet Download
  • ·CMR1-10M
  • CENTRAL [Central Semiconductor Corp]
  • GENERAL PURPOSE RECTIFIER 1.0 AMP, 200 THRU 1,000 VOLTS
  • 88927 KB
  • CMR1-10M Datasheet Download

Related Part Number

CMR2U-06 Relative Products

  • CMR2U-04

    CMR2U-04

    CMR2U-04 CENTRAL SEMICONDUCTOR 2.0 Amp Surface Mount Silicon Ultra Fast Recovery Rectifier is a high quality, well constructed, highly reliable component designed for use in all types of commercial, industrial, entertainment, computer, and automotive applica...

  • CMR2U-02

    CMR2U-02

    CMR2U-02 CENTRAL SEMICONDUCTOR 2.0 Amp Surface Mount Silicon Ultra Fast Recovery Rectifier is a high quality, well constructed, highly reliable component designed for use in all types of commercial, industrial, entertainment, computer, and automotive applica...

  • CMR2U-01

    CMR2U-01

    CMR2U-01 CENTRAL SEMICONDUCTOR 2.0 Amp Surface Mount Silicon Ultra Fast Recovery Rectifier is a high quality, well constructed, highly reliable component designed for use in all types of commercial, industrial, entertainment, computer, and automotive applica...

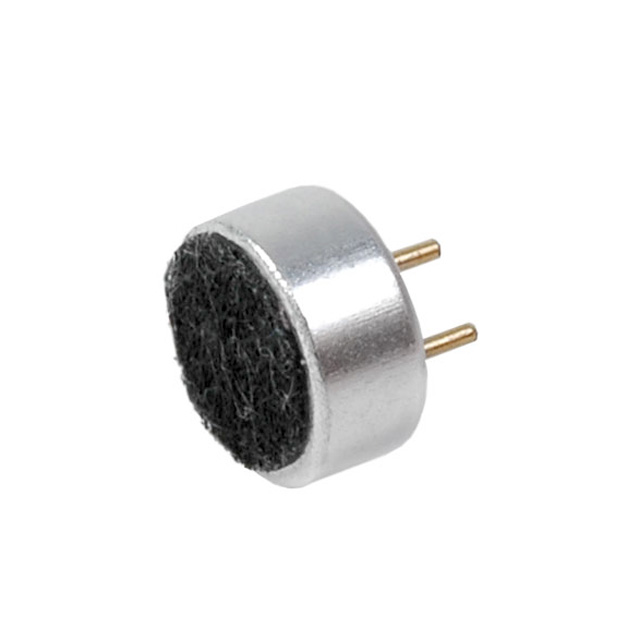

  • CMR-2747PB-A
