CMSD7000

Max Surge Current :
Product : Switching Diodes
Packaging : Reel
Package / Case : SOT-323
Peak Reverse Voltage : 100 V
Recovery Time : 4 ns
Forward Continuous Current : 0.2 A
Configuration : Dual Series
Operating Temperature Range : - 65 C to + 150 C
Forward Voltage Drop : 1.1 V
Maximum Power Dissipation : 275 mW
Maximum Reverse Leakage Current : 300 nA

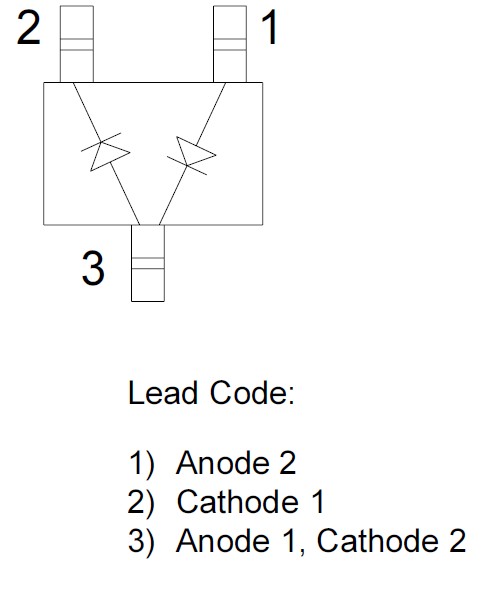

Pinout




Specifications

	SYMBOL		UNITS
Peak Repetitive Reverse Voltage	VRRM	100	V
Average Forward Current	IO	200	mA
Peak Forward Current	IFM	500	mA
Power Dissipation	PD	250	mW
Operating and Storage
Junction Temperature	TJ, Tstg	-65 to +150	°C
Thermal Resistance	QJA	500	°C/W

Description

The CENTRAL SEMICONDUCTOR CMSD7000 type is a ultra-high speed silicon switching diodes manufactured by the epitaxial planar process, in an epoxy molded super-mini surface mount package, connected in a series configuration, designed for high speed switching applications.
