CMT-1102

BUZZER AUDIO PIEZO 25V SMD

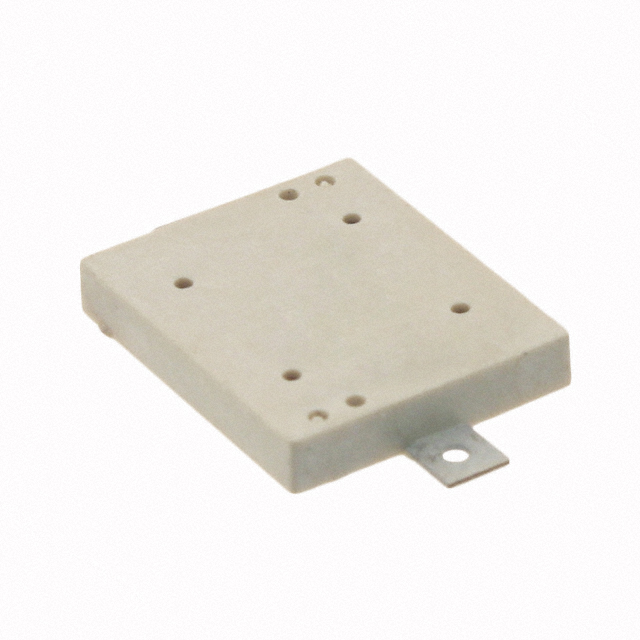

product image

CMT-1102 Picture
See larger image
SeekIC No. : 002845546 Detail

CMT-1102: BUZZER AUDIO PIEZO 25V SMD

CMT-1102 Data Sheet

floor Price/Ceiling Price

US $ .97~2.11 / Piece | Get Latest Price
Part Number:
CMT-1102
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • Unit Price
  • $2.11
  • $1.74
  • $1.31
  • $1.09
  • $.97
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: CMT Manufacturer: CUI Inc
Driver Circuitry: Transducer, Externally Driven Technology: Piezo
Input Type: peak-peak Signal Voltage - Rated: 5Vp-p
Interface Type : I2C, UART Voltage Range: 25V (Max)
Frequency: 4.1kHz Operating Mode: Continuous
Sound Pressure Level: 73dB @ 5V, 10cm Current - Supply: 4.5mA
Washable: No Mounting Type: Surface Mount
Termination: Solder Pads Size / Dimension: Rectangular - 11.00mm L x 9.00mm W x 2.00mm H

Description

Driver Circuitry: Transducer, Externally Driven
Technology: Piezo
Operating Mode: Continuous
Washable: No
Packaging: Cut Tape (CT)Alternate Packaging
Manufacturer: CUI Inc
Series: CMT
Input Type: peak-peak Signal
Voltage Range: 25V (Max)
Mounting Type: Surface Mount
Termination: Solder Pads
Voltage - Rated: 5Vp-p
Frequency: 4.1kHz
Sound Pressure Level: 73dB @ 5V, 10cm
Current - Supply: 4.5mA
Size / Dimension: Rectangular - 11.00mm L x 9.00mm W x 2.00mm H


Specifications

  • operating voltage: 25 vp-p
  • current consumption: 4.5mA
  • sound pressure level: 68dB
  • operating temperature: -40 to +80°C
  • storage temperature: -40 to +80°C
  • dimensions (LxWxH): 11 mm x 9 mm x 1.7 mm
  • weight: 0.5 grams



    • Parameters:

    Technical/Catalog InformationCMT-1102
    VendorCUI Inc (VA)
    CategoryAudio Products
    TypePiezo Transducer, External Drive
    Sound Pressure Level68dB
    Mounting TypeSurface Mount
    Capacitance @ Frequency12000pF @ 1kHz
    Frequency-
    PackagingDigi-Reel?
    Operating ModeContinuous
    Voltage Range25Vp-p (max)
    Voltage - Rated -
    Current Rating4.5mA
    Size / DimensionRectangular - 11mm L x 9mm W x 1.7mm H
    TerminationSolder Pads
    Capacitance*
    Adjustment Type*
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names CMT 1102
    CMT1102
    102 1264 6 ND
    10212646ND
    102-1264-6
