CNA1007H

Series: -
Sensing Method: Transmissive
Output Configuration: Phototransistor
Current - Collector (Ic) (Max): 20mA
Mounting Type: Through Hole
Package / Case: PCB Mount
Voltage - Collector Emitter Breakdown (Max): 30V
Current - DC Forward (If): 50mA
Packaging: Bulk
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Sensing Distance: 0.197" (5mm)
Response Time: 5µs, 5µs


Features:

Position detection accuracy : 0.3 mm
Gap width : 5 mm
Horizontal slit type
The type directly attached to PCB ( with a positioning pins)


Pinout

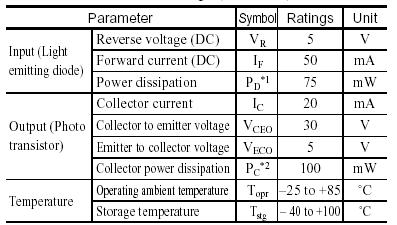

Specifications

(Ta = 25°C)

*1 Input power derating ratio is 1.0 mW/°C at Ta = 25°C.
*2 Output power derating ratio is 1.33 mW/°C at Ta = 25°C.


Parameters:

Technical/Catalog Information	CNA1007H
Vendor	Panasonic - SSG
Category	Sensors, Transducers
Sensing Distance	0.197" (5mm)
Sensing Method	Transmissive
Voltage - Collector Emitter Breakdown (Max)	30V
Current - Collector (Ic) (Max)	20mA
Current - DC Forward (If)	50mA
Output Configuration	Phototransistor
Response Time	5s , 5s <!--5us-->
Type	Unamplified
Mounting Type	Through Hole
Package / Case	PCB Mount
Packaging	Bulk
Operating Temperature	-25°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CNA1007H CNA1007H
