CNY21N

Features: According to VDE 0884Rated impulse voltage (transient overvoltage) VIOTM = 8 kV peakIsolation test voltage (partial discharge test voltage) Vpd = 2.8 kV peakRated isolation voltage (RMS includes DC) VIOWM = 1000 VRMS (1450 V peak)Rated recurring peak voltage (repetitive) VIORM = 1000 VRM...

product image

CNY21N Picture
See larger image
SeekIC No. : 004315210 Detail

CNY21N: Features: According to VDE 0884Rated impulse voltage (transient overvoltage) VIOTM = 8 kV peakIsolation test voltage (partial discharge test voltage) Vpd = 2.8 kV peakRated isolation voltage (RMS in...

CNY21N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CNY21N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

According to VDE 0884
 Rated impulse voltage (transient overvoltage) VIOTM = 8 kV peak
 Isolation test voltage (partial discharge test voltage) Vpd = 2.8 kV peak
 Rated isolation voltage (RMS includes DC) VIOWM = 1000 VRMS (1450 V peak)
 Rated recurring peak voltage (repetitive) VIORM = 1000 VRMS
 Creeping current resistance according to VDE 0303/IEC 112
Comparative Tracking Index: CTI = 275
 Thickness through insulation > 3 mm
 Isolation materials according to UL 94
 Pollution degree 2 (DIN/VDE 0110)
 Climatic classification 55/085/21 (IEC 68 part 1)
 Further approvals: BS 415, BS 7002, SETI: IEC 950, UL 1577: File no: E 76222
 Special construction: therefore extra low coupling capacity of typical 0.3 pF, high Common Mode Rejection
 Low temperature coefficient of CTR
 Current Transfer Ratio (CTR) of typical 60%


Application

Circuits for safe protective separation against electrical shock according to safety class II (reinforced isolation):
  For application class I - IV at mains voltage 3 300 V
  For application class I - IV at mains voltage 3 600 V
  For application class I - III at mains voltage 3 1000 V according, to VDE 0884, table 2, suitable for:
Switch-mode power supplies, computer peripheral interface, microprocessor system interface, line receiver.


Pinout

Connection Diagram

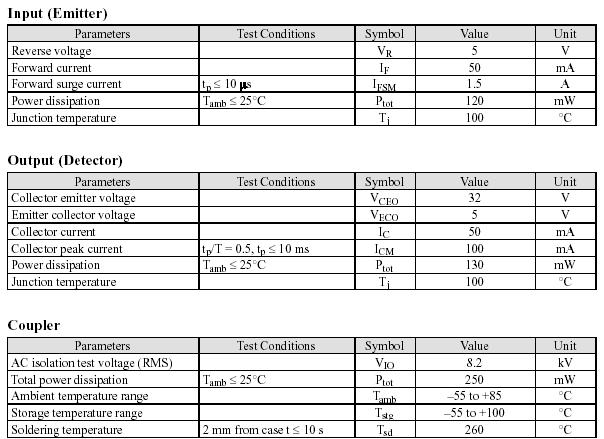

Specifications

Connection Diagram


Description

The CNY21N consists of a phototransistor optically coupled to a gallium arsenide infrared emitting diode in a 4-lead plastic dual inline package.
The single components CNY21N are mounted on one leadframe in the opposite position, providing a fixed distance between
input and output for highest safety requirements of > 3 mm.
