CNY742H

Features:

` CNY74-2H includes 2 isolater channels
` CNY74-4H includes 4 isolater channels
` Isolation test voltage V<sub>IO</sub> = 5 kV
` Test class 25/100/21 DIN 40 045
` Low coupling capacitance of typical 0.3 pF
` Current Transfer Ratio (CTR) of typical 100%
` Low temperature coefficient of CTR
` Wide ambient temperature range
` Underwriters Laboratory (UL) 1577 recognized,
    file number E-76222
` CSA (CUL) 1577 recognized, file number
    E-76222 Double Protection
` Coupling System U

Application

Galvanically separated circuits, non-interacting
switches

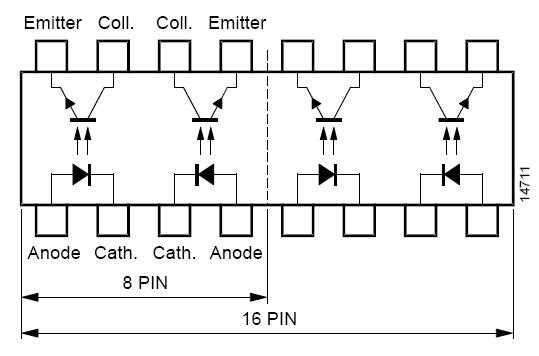

Pinout




Specifications

Parameter	Test Conditions	Symbol	Value	Unit
Reverse voltage		VR	6	V
Forward current		IF	60	mA
Forward surge current	tp 10s	IFSM	1.5	A
Power dissipation	Tamb 25	PV	100	mW
Junction temperature		Tj	125

Description

The CNY74-2H and CNY74-4H consist of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in an 8-lead, resp. 16-lead plastic dual inline package.

CNY742H elements are mounted on one leadframe using a coplanar technique, providing a fixed distance between input and output for highest safety requirements
