CNZ1002

PHOTO INTERRUPTER 0.9MM IO4-1

product image

CNZ1002 Picture
See larger image
SeekIC No. : 004137786 Detail

CNZ1002: PHOTO INTERRUPTER 0.9MM IO4-1

CNZ1002 Data Sheet

floor Price/Ceiling Price

US $ .21~.5 / Piece | Get Latest Price
Part Number:
CNZ1002
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • 250~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $.5
  • $.4
  • $.35
  • $.31
  • $.27
  • $.21
  • $.21
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Panasonic Electronic Components - Semiconductor Products
Sensing Distance: 0.035" (0.9mm) Sensing Method: Transmissive
Output Configuration: Phototransistor Package / Case : HVQFN EP
Current - DC Forward (If): 50mA Current - Collector (Ic) (Max): 20mA
Voltage - Collector Emitter Breakdown (Max): 35V Response Time: 35µs, 35µs
Mounting Type: Through Hole Package / Case: PCB Mount

Description

Series: -
Sensing Method: Transmissive
Output Configuration: Phototransistor
Current - Collector (Ic) (Max): 20mA
Mounting Type: Through Hole
Package / Case: PCB Mount
Current - DC Forward (If): 50mA
Packaging: Bulk
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Voltage - Collector Emitter Breakdown (Max): 35V
Response Time: 35µs, 35µs
Sensing Distance: 0.035" (0.9mm)


Features:

`Ultraminiature : 4.0*3.8 mm (height : 5.1 mm)
`Fast response : tr, tf = 35 s (typ.)
`Highly precise position detection : 0.25 mm
`Gap width : 0.9 mm


Pinout

Connection Diagram

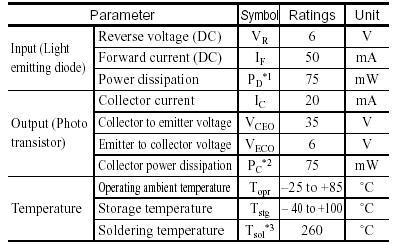

Specifications

(Ta = 25°C)
Connection Diagram
*1 Input power derating ratio is 1.0mW/°C at Ta 25°C.
*2 Output power derating ratio is 1.0mW/°C at Ta 25°C.
*3 Soldering time is within 5 seconds.
