The CO4011 is a low cost, high performance Single Chip solution for CANopen remote I/O modules and especially designed for automotive and industrial applications. The device offers the complex implementation of the CANopen standards DS301 and DS401 in a single chip. It is suitable for simple low cost applications like sensor interfacing as well as for complex I/O systems.
CO4011 provides up to 32 digital I/O lines, 0, 4 or 8 channels may be set for analog input operation with a resolution of 8 or 10 bit. To support output overload monitoring, a special error interrupt input is provided. All usual baud rates up to 1 MBit are supported.
The CO4011 Chip requires only few external components, just like a crystal, a CAN transceiver and capacitors. To minimize external interface recommendations all output pins have high current drive capability of 4 mA. For interfacing optoisolators no external drivers are required.
CO4011 is a software solution to run on Fujitsu MB90F497 micro controller. It is offered either as software runtime licence or as ready programmed chip (runtime licence included).
CO4011A-FL Features
` Single Chip CANopen Controller
` According to CiA Draft Standards DS301 Version 4.0 and DS401 Version 2.0
` Baudrate up to 1MBit
` Various I/O configurations
` Internal noise filtering for all inputs with individual setting for each channel
` Error interrupt input for output overload monitoring
` Output drivers with 4mA
` Watchdog output
` Temperature ranges up to 40 to 105
` Package QFP64
` According to CiA Draft Standards DS301 Version 4.0 and DS401 Version 2.0
` Baudrate up to 1MBit
` Various I/O configurations
` Internal noise filtering for all inputs with individual setting for each channel
` Error interrupt input for output overload monitoring
` Output drivers with 4mA
` Watchdog output
` Temperature ranges up to 40 to 105
` Package QFP64
CO4011A-FL Typical Application
The CO4011 CANopen Controller is optimised for automotive and industrial applications such as:
· Remote I/O Modules for CANopen
· CANopen Interface for keyboards and control panels
· Low Cost CANopen Interface for sensors like
photoelectric reflex switches
photo interrupters
· Low Cost CANopen Interface for actors like pneumatic valves, warning panels etc.
· Remote I/O Modules for CANopen
· CANopen Interface for keyboards and control panels
· Low Cost CANopen Interface for sensors like
photoelectric reflex switches
photo interrupters
· Low Cost CANopen Interface for actors like pneumatic valves, warning panels etc.

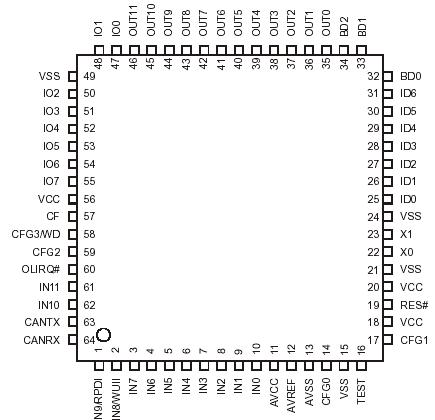

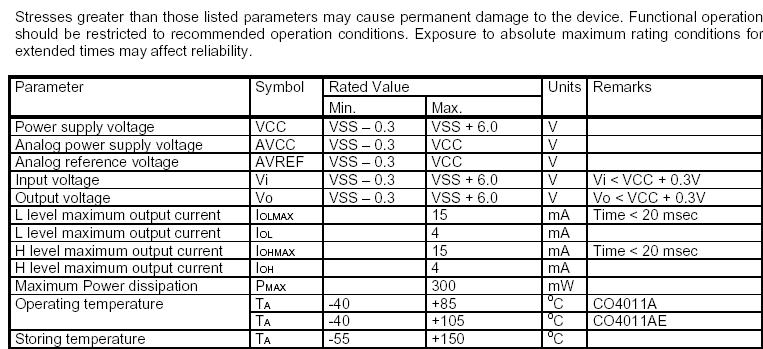

CO4011A-FL Connection Diagram
CO4011A-FL
PDF/DataSheet Download
- Datasheet: CO4011A-FL
- File Size: 401347 KB
- Manufacturer: ETC [ETC]
- Click here to Download
- ·CO4011AE-FL
- ETC [ETC]
- Single Chip CANopen Controller for Remote I/O
- 401347 KB
- ·CO4011SRL-F
- ETC [ETC]
- Single Chip CANopen Controller for Remote I/O
- 401347 KB
- ·CO4558L
- CERAMATE [Ceramate Technical]
- Dual Operational Lowpower Amplifier for Audio
- 1292595 KB
