Part Number: COP87L88CF
Description: The COP87L88CF OTP (One Time Programmable) microcontrollers are highly integrated COP8™ Feature ...
- Table of contents:
COP87L88CF
-
Suppliers
DataSheet
General Description
COP87L88CF General Description
The COP87L88CF OTP (One Time Programmable) microcontrollers are highly integrated COP8™ Feature core devices with 16k memory and advanced features including an A/D converter. These multi-chip CMOS devices are suited for applications requiring a full featured controller with an 8-bit A/D converter, and as pre-production devices for a masked ROM design. Lower cost pin and software compatible 16k ROM versions are available (COP888CF) as well as a range of COP8 software and hardware development tools. Family features include an 8-bit memory mapped architecture, 10 MHz CKI (-XE = crystal oscallator) with 1 µs instruction cycle, two multi-function 16-bit timer/counters, MICROWIRE/PLUS™ serial I/O, one 8-bit/8-channel A/D converter with prescaler and both differential and single ended modes, two power saving HALT/IDLE modes, idle timer, MIWU, high current outputs, software selectable I/O options, WATCHDOG™ timer and Clock Monitor, 2.7V to 5.5V operation and 28/40/44 pin packages.
Devices included in this datasheet are:
COP87L88CF Features
` A/D converter (8-bit, 8-channel, with prescaler and both differential and single ended modes)
` Two 16-bit timers, each with two 16-bit registers
supporting:
- Processor Independent PWM mode
- External Event counter mode
- Input Capture mode
` 16 kbytes on-board OTP EPROM with security feature
` 128 bytes on-board RAM
` Two 16-bit timers, each with two 16-bit registers
supporting:
- Processor Independent PWM mode
- External Event counter mode
- Input Capture mode
` 16 kbytes on-board OTP EPROM with security feature
` 128 bytes on-board RAM

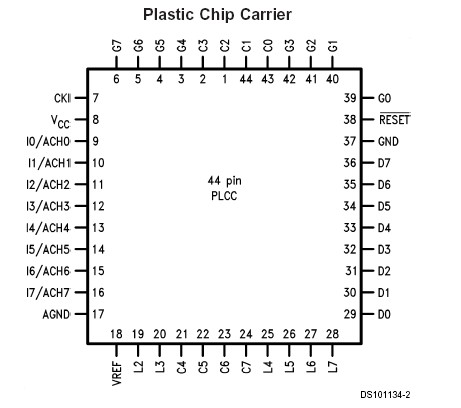

COP87L88CF Connection Diagram
COP87L88CF
PDF/DataSheet Download
- Datasheet: COP87L88CF
- File Size: 568979 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
