COP884CG

Features: *Full duplex UART* Three 16-bit timers, each with two 16-bit registers supporting: _Processor independent PWM mode _External event counter mode_Input capture mode* Quiet design (low radiated emissions)* 4 kbytes of on-chip ROM*192 bytes of on-chip RAMPinoutSpecificationsIf Military/Aeros...

product image

COP884CG Picture
See larger image
SeekIC No. : 004315342 Detail

COP884CG: Features: *Full duplex UART* Three 16-bit timers, each with two 16-bit registers supporting: _Processor independent PWM mode _External event counter mode_Input capture mode* Quiet design (low radiat...

COP884CG Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
COP884CG
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Full duplex UART
* Three 16-bit timers, each with two 16-bit registers supporting:
    _ Processor independent PWM mode
    _External event counter mode
    _Input capture mode
* Quiet design (low radiated emissions)
* 4 kbytes of on-chip ROM
*192 bytes of on-chip RAM


Pinout

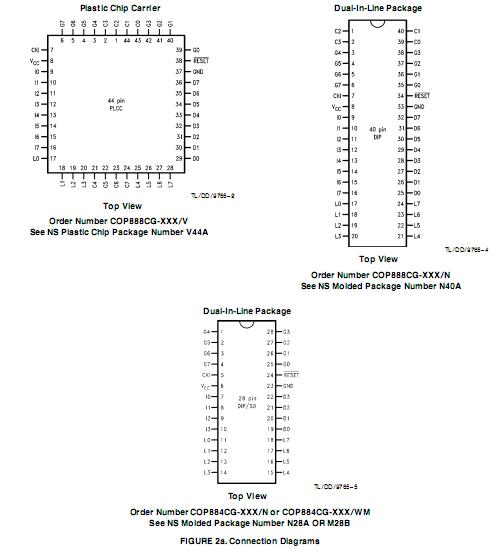

Connection Diagram


Specifications

If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distrib -utors for availability and specifications.

Supply Voltage (VCC)..................................................................7V
Voltage at Any Pin ..........................................- 0.3V to VCC + 0.3V
Total Current into VCC Pin (Source).................................... 100 mA
Total Current out of GND Pin (Sink) .....................................110 mA
Storage Temperature Range................................. - 65to + 140


Description

The COP888 family of microcontrollers uses an 8-bit single chip core architecture fabricated with National Semico nductor's M2CMOSTM process technology. The COP888CG is a member of this expandable 8-bit core processor family of microcontrollers. (Continued)
