CP1084

Features: · Low Dropout Voltage: 1.3V Typically at 5A· Current Limiting and Thermal Protection· Output Current: 5A· Current Limit: 6.5A· Operating Junction Temperature Range:0 to 125oC· Line Regulation: 0.015% (Typical)· Load Regulation: 0.2% (Typical)Application· High Efficiency Linear Regulators...

product image

CP1084 Picture
See larger image
SeekIC No. : 004315428 Detail

CP1084: Features: · Low Dropout Voltage: 1.3V Typically at 5A· Current Limiting and Thermal Protection· Output Current: 5A· Current Limit: 6.5A· Operating Junction Temperature Range:0 to 125oC· Line Regulat...

CP1084 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CP1084
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low Dropout Voltage: 1.3V Typically at 5A
· Current Limiting and Thermal Protection
· Output Current: 5A
· Current Limit: 6.5A
· Operating Junction Temperature Range:0 to 125oC
· Line Regulation: 0.015% (Typical)
· Load Regulation: 0.2% (Typical)


Application

· High Efficiency Linear Regulators
· Battery Chargers
· Post Regulation for Switching Supply
· Microprocessor Supply
· Desktop PCs, RISC and Embedded Processors' Supply


Pinout

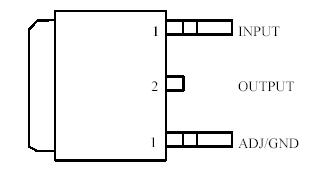

Connection Diagram


Specifications

Parameter Symbol Min Max Unit
Operating Junction Temperature Range TJ   150 oC
Storage Temperature Range TS -65 150 oC
Lead Temperature (Soldering, 10 sec.) TLEAD   300 oC
ESD (Human Body Model) ESD   2000 V



Description

The CP1084 is a series of low dropout positive voltage regulators with a maximum dropout of 1.5V at 5A of load current.

The series features on-chip thermal limiting which provides protection against any combination of overload and ambient temperatures that would create excessive junction temperatures. CP1084 also includes a trimmed bandgap reference and a current limiting circuit.

The CP1084 is available in 1.5V, 1.8V, 2.5V, 3.3V, and 5.0Vversions. The fixed versions integrate the adjust resistors. It is also available in an adjustable version which can set the output voltage with two external resistors.

The CP1084 series is available in standard packages of TO-263-2L, TO-252.
