CPE-223

BUZZER PIEZO 12VDC 3.3KHZ PCB

product image

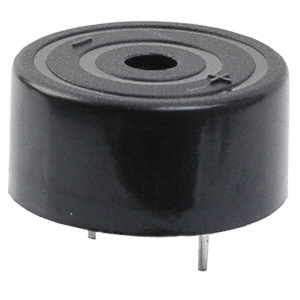

CPE-223 Picture
See larger image
SeekIC No. : 002845558 Detail

CPE-223: BUZZER PIEZO 12VDC 3.3KHZ PCB

CPE-223 Data Sheet

floor Price/Ceiling Price

US $ 1.02~1.02 / Piece | Get Latest Price
Part Number:
CPE-223
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1000
  • Unit Price
  • $1.02
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: CPE Manufacturer: CUI Inc
Driver Circuitry: Indicator, Internally Driven Technology: Piezo
Input Type: DC Voltage - Rated: 12VDC
Voltage Range: 3 ~ 20V Frequency: 3.3kHz
Operating Mode: Continuous Sound Pressure Level: 81dB @ 12V, 30cm
Dimensions : 6.5 mm x 9 mm x 1.8 mm Current - Supply: 13mA
Washable: No Mounting Type: Through Hole
Termination: PC Pins Size / Dimension: Circular - 23.80mm Dia x 12.70mm H

Description

Technology: Piezo
Operating Mode: Continuous
Washable: No
Mounting Type: Through Hole
Termination: PC Pins
Packaging: Bulk
Manufacturer: CUI Inc
Series: CPE
Driver Circuitry: Indicator, Internally Driven
Input Type: DC
Voltage - Rated: 12VDC
Frequency: 3.3kHz
Current - Supply: 13mA
Voltage Range: 3 ~ 20V
Sound Pressure Level: 81dB @ 12V, 30cm
Size / Dimension: Circular - 23.80mm Dia x 12.70mm H


Specifications

  • resonant frequency: 3.3 ± 0.5 kHz
  • operating voltage: 3 ~ 20 V dc
  • current consumption: 13 mA
  • sound pressure level: 81 db
  • rated voltage: 12 V dc
  • tone: continuous
  • operating temperature: -20 ~ +85° C
  • storage temperature: -30 ~ +95° C
  • dimensions: ?23.8 x 12.2 mm
  • weight: 3.5 g
  • material: PBT+15% glass (black)
  • termination: pin type
  • 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">



    • Parameters:

    Technical/Catalog InformationCPE-223
    VendorCUI Inc
    CategoryAudio Products
    TypePiezo Indicator, Internal Drive
    Sound Pressure Level81dB
    Mounting TypeThrough Hole
    Capacitance @ Frequency-
    Frequency3.3kHz
    PackagingBulk
    Operating ModeContinuous
    Voltage Range3~20VDC
    Voltage - Rated 12VDC
    Current Rating13mA
    Size / DimensionCircular - 23.8mm Dia x 12.2mm H
    TerminationSolder Pins/Posts
    Capacitance*
    Adjustment Type*
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names CPE 223
    CPE223
    102 1625 ND
    1021625ND
    102-1625
