CPE-267

BUZZER PIEZO 2.8KHZ 26MM WTRPROF

product image

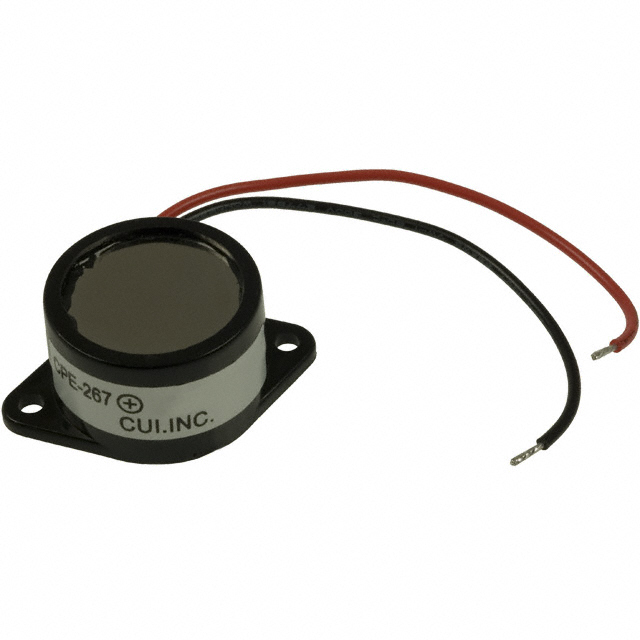

CPE-267 Picture
See larger image
SeekIC No. : 002845534 Detail

CPE-267: BUZZER PIEZO 2.8KHZ 26MM WTRPROF

CPE-267 Data Sheet

floor Price/Ceiling Price

US $ 2.58~5.36 / Piece | Get Latest Price
Part Number:
CPE-267
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $5.36
  • $4.54
  • $3.51
  • $2.89
  • $2.68
  • $2.58
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: CPE Manufacturer: CUI Inc
Driver Circuitry: Indicator, Internally Driven Technology: Piezo
Input Type: DC Voltage - Rated: 12VDC
Voltage Range: 6 ~ 14V Frequency: 2.8kHz
Operating Mode: Continuous Dimensions : 6.5 mm x 9 mm x 1.8 mm
Sound Pressure Level: 85dB @ 12V, 30cm Current - Supply: 35mA
Washable: No Mounting Type: Chassis Mount
Termination: Wire Leads Size / Dimension: Circular - 25.60mm Dia x 16.50mm H

Description

Technology: Piezo
Operating Mode: Continuous
Washable: No
Packaging: Bulk
Manufacturer: CUI Inc
Current - Supply: 35mA
Series: CPE
Termination: Wire Leads
Driver Circuitry: Indicator, Internally Driven
Input Type: DC
Voltage - Rated: 12VDC
Frequency: 2.8kHz
Mounting Type: Chassis Mount
Sound Pressure Level: 85dB @ 12V, 30cm
Voltage Range: 6 ~ 14V
Size / Dimension: Circular - 25.60mm Dia x 16.50mm H


Specifications

  • resonant frequency: 2.8kHz ±0.5
  • operating voltage: 6-14 Vdc
  • current consumption: 35mA
  • sound pressure level: 85dB
  • rated voltage: 12 Vdc
  • operating temperature: -30 to +85°C
  • storage temperature: -40 to +95°C
  • diameter: 25 mm
  • depth: 16 mm
  • weight: 41 grams
  • termination: wire leads



    • Parameters:

    Technical/Catalog InformationCPE-267
    VendorCUI Inc
    CategoryAudio Products
    TypePiezo Indicator, Internal Drive
    Sound Pressure Level85dB
    Mounting TypeFlange Mount
    Capacitance @ Frequency-
    Frequency2.8kHz
    PackagingBulk
    Operating ModeContinuous
    Voltage Range6~14VDC
    Voltage - Rated 12VDC
    Current Rating35mA
    Size / DimensionCircular - 25mm Dia x 16mm H
    TerminationWire Leads
    Capacitance*
    Adjustment Type*
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names CPE 267
    CPE267
    102 1282 ND
    1021282ND
    102-1282
