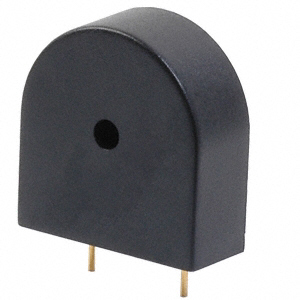

CPE-502

Driver Circuitry: Transducer, Externally Driven
Technology: Piezo
Voltage Range: 30V (Max)
Operating Mode: Continuous
Washable: No
Mounting Type: Through Hole
Termination: PC Pins
Packaging: Bulk
Manufacturer: CUI Inc
Input Type: peak-peak Signal
Series: CPE
Voltage - Rated: 10Vp-p
Current - Supply: 10mA
Frequency: 3.3kHz
Sound Pressure Level: 93dB @ 10V, 10cm
Size / Dimension: Rectangular - 24.00mm L x 10.00mm W x 25.00mm H


Specifications

operating voltage: 30 Vp-p

current consumption: 10 mA

sound pressure level: 93 db

electrostatic capacity: 17,100 ± 30%

operating temperature: -30 ~ +115° C

storage temperature: -40 ~ +125° C

dimensions (LxWxH): 25.0 x 24.0 x 10.0 mm

weight: 3.7 g

material: PC 10% glass (black)

termination: pin type

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	CPE-502
Vendor	CUI Inc
Category	Audio Products
Type	Piezo Transducer, External Drive
Sound Pressure Level	93dB
Mounting Type	Through Hole
Capacitance @ Frequency	17100pF @ 1kHz
Frequency	-
Packaging	Bulk
Operating Mode	-
Voltage Range	30Vp-p (max)
Voltage - Rated	10Vp-p
Current Rating	10mA
Size / Dimension	Rectangular - 25mm L x 24mm W x 10mm H
Termination	Solder Pins/Posts
Capacitance	*
Adjustment Type	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CPE 502 CPE502 102 1610 ND 1021610ND 102-1610
