Product Details

Description

Features:

• Composite type with two NPN transistors contained in one package facilitating high-density mounting.
• The two chips contained are equivalent to the CPH3209.
• Ultrasmall package permitting applied sets to be made small and slim.(0.9mm)

Application

• Relay drivers, lamp drivers, motor drivers, strobes.

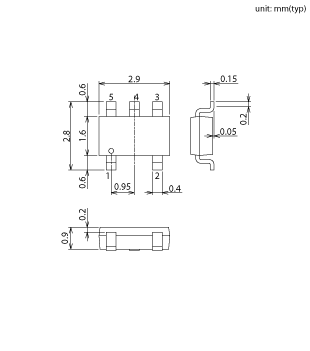

Pinout

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Collector-to-Base Voltage	V_CBO		40	V
Collector-to-Emitter Voltage	V_CEO		30	V
Emitter-to-Base Voltage	V_EBO		5	V
Collector Current	I_C		3	A
Collector Current (Pulse)	I_CP		5	A
Base Current	I_B		0.9	A
Collector Dissipation	P_C	Mounted on a ceramic board (600m*0.8mm)	0.9	W
Total Dissipation	P_T	Mounted on a ceramic board (600m*0.8mm)	1.2	W
Junction Temperature	T_ch		150
Storage Temperature	T_stg		-55 to +150

Absolute maximum ratings
VCEO [V]	30
IC [A]	3
PC [W]	0.9 When mounted on ceramic substrate (600mm²*0.8mm)

Electrical characteristics
hFE min	200
hFE max	560
VCE [V]	2
IC [A]	0.5
fT typ [MHz]	450
VCE [V]	10
IC [mA]	500
VCE (sat) typ [V]	0.12
VCE (sat) max [V]	0.18
IC [A]	1.5
IB [mA]	30
