Product Details

Description



Features:

· Transition times (10 to 90%):3.5 ns rise and 2.7 ns fall with 50 V (p-p) swing and CL at 10 pF
· Low power consumption: 10 W with 25 MHz square wave
· Minimum small signal bandwidth: 85 MHz
· Very fast slew rate: 12000 V/ms
· Excellent grey-scale linearity
· Unconditional stability
· Gold metallization ensures excellent reliability.


Application

It is designed for application in cathode-ray tube (CRT) drivers in high-resolution colour monitors.

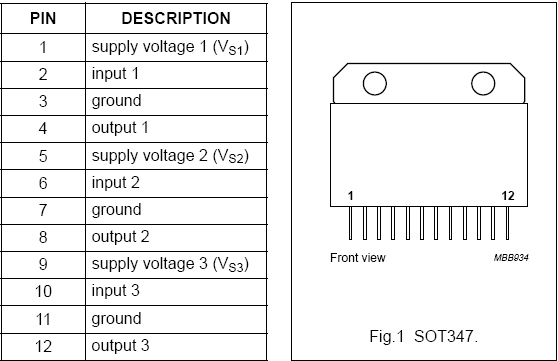

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER
MIN.
MAX.
UNIT
Per amplifier
VS supply voltage (DC)
-
90
V
Tmb operating mounting base
temperature
-20
+100
°C
Tstg storage temperature
-40
+125
°C



Description

Hybrid amplifier module comprising three video amplifiers in a SOT347 package.
