CR7929

Features:

` Transition times (10 to 90%) with 45 V (p-p) swing and CL = 10 pF:
rise time (typ.) 2.2 ns
fall time (typ.) 1.9 ns
` Small 11-pin package
` Design optimized for excellent smearing performance
` Gold metallization for highest reliability.


Application

· Top-end colour cathode-ray tube (CRT) monitors with pixel frequencies up to 300 MHz.

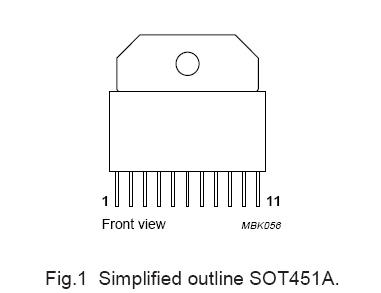

Pinout




Description

The CR7929 is a 3-channel hybrid RGB-amplifier module in an11-pin SOT451A package. Succeeding the succesful CR6927, CR6928 and CR6929 families, the CR7929 is a pin-compatible next step in high-bandwidth active load amplifiers. Being an active load, CR7929 combines a high bandwidth with a relatively low and constant dissipation. Its optimized design, together with innovative application recommendations, ensures excellent smearing performance.
