CRD4201-1

Features: Six Channel Analog Audio OutputBuilt-in Headphone AmplifierCS4201 audio codec and CS4334 DACs20-bit D to A conversion (DAC)18-bit A to D conversion (ADC)S/PDIF (IEC-958) optical digital outputComplete suite of Analog I/O connections: Line, Mic, CD, Video and Aux Inputs Line Front, and ...

product image

CRD4201-1 Picture
See larger image
SeekIC No. : 004316031 Detail

CRD4201-1: Features: Six Channel Analog Audio OutputBuilt-in Headphone AmplifierCS4201 audio codec and CS4334 DACs20-bit D to A conversion (DAC)18-bit A to D conversion (ADC)S/PDIF (IEC-958) optical digital ou...

CRD4201-1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CRD4201-1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Six Channel Analog Audio Output
Built-in Headphone Amplifier
CS4201 audio codec and CS4334 DACs
20-bit D to A conversion (DAC)
18-bit A to D conversion (ADC)
S/PDIF (IEC-958) optical digital output
Complete suite of Analog I/O connections:
   Line, Mic, CD, Video and Aux Inputs
   Line Front, and Line Rear Outputs
Joystick/MIDI Interface
2-layer low cost PC board
Meets Intel ®AC '97 version 2.1 specification
Exceeds Microsoft's® PC 99 audio performance requirements.


Pinout

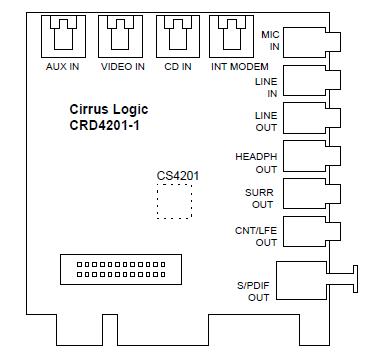

Connection Diagram


Description

The CRD4201-1 CNR reference design features six channel analog audio outputs and a optical S/PDIF digital output. This board uses the CS4201 audio codec which has several advanced features such as a built-in headphone amplifier, up to 30 dB of microphone boost, and serial digital audio outputs.

The CRD4201-1 reference design is available by ordering the CMK4201-1 manufacturing kit. This kit includes a full set of schematic design files (OrCAD® 7.2 format), PCB job files (PADS® ASCII), PCB artwork files, and bill of materials. This reference design offers significant cost savings over competing solutions and can be easily modified to meet your specific design goals.
