Product Details

Description

Features:

2 Channel Low Cost High Performance PCI Audio Accelerator add-in card
CS4281 PCI Audio Controller and CS4297A Audio Codec '97
Complete suite of Analog I/O connections:
Line, Mic, CD, and Aux Inputs
Line and Headphone Outputs
S/PDIF (IEC-958) digital output
ZV Port Input
Joystick/MIDI Interface
2-layer low cost adapter board
Exceeds Microsoft's® PC 99 audio performance specifications.
Complies with the AC '97 version 2.1 specification

Pinout

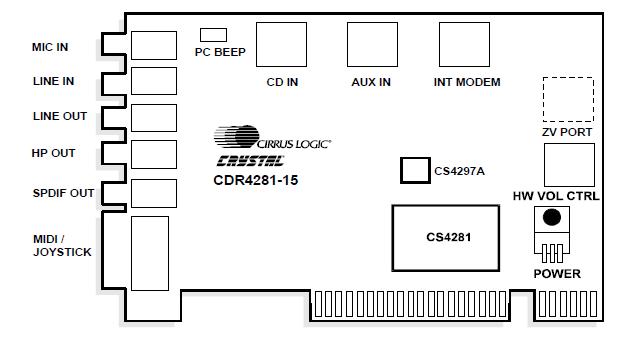

Connection Diagram

Description

The CRD4281-15 is a low cost PCI add-in board reference design that showcases Cirrus Logic's CS4281 audio controller and the CS4297A audio codec. The card features two channel 20-bit DACs, two channel 18-bit ADCs, an optional ZV port digital input, and a S/PDIF digital output.

The CRD4281-15 reference design is available by orderingm the CMK4281-15 manufacturing kit. Use this kit to help you develop high quality PCI add-in cards and PC motherboard audio designs. The CMK4281-15 includes a full set of schematic design files (OrCAD® 7.2 format), PCB job files (PADS® ASCII), PCB artwork files, and bill of materials. This design is production ready. It can also be easily modified to meet your specific requirements.
