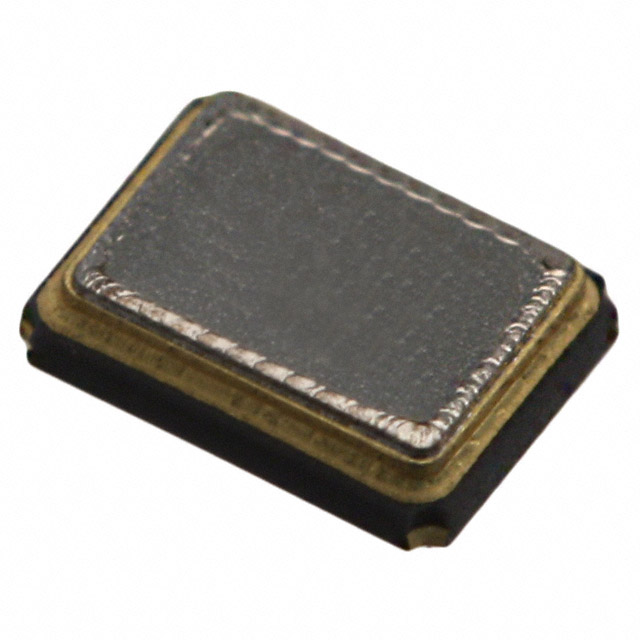

CS-018-114.285MHZ: CRYSTAL 114.285 MHZ 18PF SMD

CS-018-114.285MHZ Data Sheet

Get Latest Price

Part Number:: CS-018-114.285MHZ
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

CS-018-114.285M evaluate
US $1.31 - 2.43 / Piece

CRYSTAL 114.285 MHZ 18PF SMD
CS-023-114.285M evaluate
US $1.74 - 3.24 / Piece

CRYSTAL 114.285 MHZ 18PF SMD

Product Details

Quick Details

Series:	CS-018	Manufacturer:	Connor-Winfield
Type:	MHz Crystal	Frequency:	114.285MHz
Collector- Base Voltage VCBO :	1400 V	Frequency Stability:	±100ppm
Frequency Tolerance:	±100ppm	Load Capacitance:	18pF
ESR (Equivalent Series Resistance):	80 Ohm	Operating Mode:	3rd Overtone
Operating Temperature:	-40°C ~ 85°C	Ratings:	-
Mounting Type:	Surface Mount	Package / Case:	4-SMD, No Lead (DFN, LCC)
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)	Height:	0.031" (0.80mm)

Description

Type: MHz Crystal
Ratings: -
Mounting Type: Surface Mount
Packaging: Tape & Reel (TR)
Load Capacitance: 18pF
ESR (Equivalent Series Resistance): 80 Ohm
Operating Mode: 3rd Overtone
Operating Temperature: -40°C ~ 85°C
Frequency Stability: ±100ppm
Package / Case: 4-SMD, No Lead (DFN, LCC)
Size / Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height: 0.031" (0.80mm)
Frequency Tolerance: ±100ppm
Frequency: 114.285MHz
Series: CS-018
Manufacturer: Connor-Winfield

Parameters:

Technical/Catalog Information	CS-018-114.285MHZ
Vendor	Connor-Winfield
Category	Crystals and Oscillators
Frequency	114.285MHz
Load Capacitance	18pF
Package / Case	3.2mm x 2.5mm
Packaging	Tape & Reel (TR)
Frequency Tolerance	±100ppm
Mounting Type	Surface Mount
Operating Mode	3rd Overtone
Operating Temperature	-40°C ~ 85°C
Type	Quartz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CS 018 114 285MHZ CS018114285MHZ
