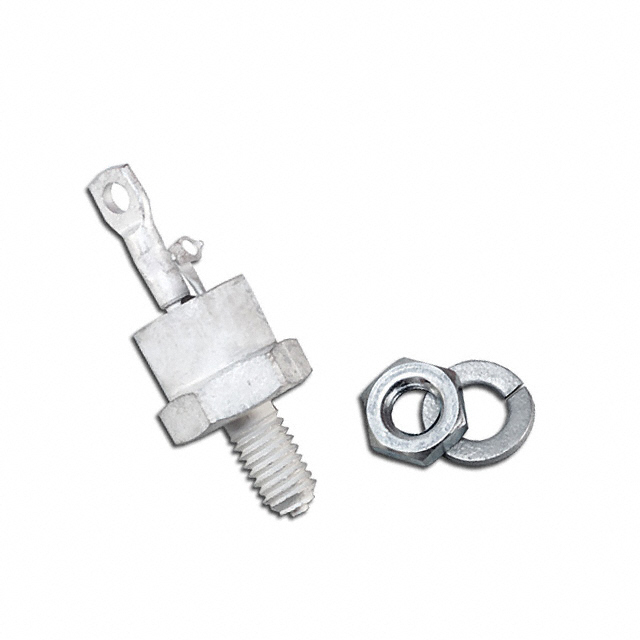

See larger image

SeekIC No. : 00198885 Detail

CS23-12io2: SCRs 1200V 25A

CS23-12io2 Data Sheet

Get Latest Price

Part Number:: CS23-12io2
Mfg:: Ixys
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

CS23-08io2 evaluate
SCRs 800V 25A
CS2300CP-CZZ evaluate
US $1.58 - 1.75 / Piece

Clock Synthesizer / Jitter Cleaner IC Gen Purpose PLL Clock Multi w/LCO
CS2300CP-CZZR evaluate
US $1.54 - 1.54 / Piece

Clock Synthesizer / Jitter Cleaner IC Gen Purp PLL LCO

Product Details

Quick Details

Breakover Current IBO Max :	480 A	Rated Repetitive Off-State Voltage VDRM :	1.2 KV
Off-State Leakage Current @ VDRM IDRM :	3 mA	Forward Voltage Drop :	1.8 V
Gate Trigger Voltage (Vgt) :	2.5 V	Maximum Gate Peak Inverse Voltage :	10 V
Gate Trigger Current (Igt) :	50 mA	Holding Current (Ih Max) :	100 mA
Mounting Style :	Stud	Package / Case :	TO-208-AA
Packaging :	Bulk

Description

On-State RMS Current (It RMS) :
Packaging : Bulk
Gate Trigger Voltage (Vgt) : 2.5 V
Maximum Gate Peak Inverse Voltage : 10 V
Mounting Style : Stud
Holding Current (Ih Max) : 100 mA
Breakover Current IBO Max : 480 A
Forward Voltage Drop : 1.8 V
Gate Trigger Current (Igt) : 50 mA
Off-State Leakage Current @ VDRM IDRM : 3 mA
Package / Case : TO-208-AA
Rated Repetitive Off-State Voltage VDRM : 1.2 KV

Parameters:

Technical/Catalog Information	CS23-12IO2
Vendor	IXYS
Category	Discrete Semiconductor Products
SCR Type	Standard Recovery
Voltage - Off State	1200V
Current - On State (It (RMS)) (Max)	50A
Current - On State (It (AV)) (Max)	32A
Current - Gate Trigger Current (Igt) (Max)	50mA
Current - Hold (Ih) (Max)	100mA
Current - Non Rep. Surge 50/60Hz (Itsm)	450A, 480A
Voltage - Gate Trigger (Vgt) (Max)	2.5V
Mounting Type	Stud Mount
Package / Case	TO-208AA
Packaging	Bulk
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	CS23 12IO2 CS2312IO2
