CS3310

Features: lComplete Digital Volume Control- 2 Independent Channels- Serial Control- 0.5 dB Step Size`Wide Adjustable Range- -95.5 dB Attenuation- +31.5 dB Gain`Low Distortion & Noise- 0.001% THD+N- 116 dB Dynamic Range`Noise Free Level Transitions`Channel-to-Channel Crosstalk Better Than 110 d...

product image

CS3310 Picture
See larger image
SeekIC No. : 004316309 Detail

CS3310: Features: lComplete Digital Volume Control- 2 Independent Channels- Serial Control- 0.5 dB Step Size`Wide Adjustable Range- -95.5 dB Attenuation- +31.5 dB Gain`Low Distortion & Noise- 0.001% THD...

CS3310 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CS3310
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

lComplete Digital Volume Control
- 2 Independent Channels
- Serial Control
- 0.5 dB Step Size
`Wide Adjustable Range
- -95.5 dB Attenuation
- +31.5 dB Gain
`Low Distortion & Noise
- 0.001% THD+N
- 116 dB Dynamic Range
`Noise Free Level Transitions
`Channel-to-Channel Crosstalk Better Than 110 dB

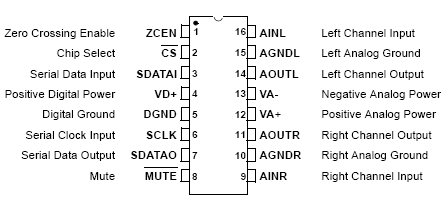

Pinout

Connection Diagram




Specifications

Channels Dynamic Range (dB) THD+N (dB) Analog I/O Power Supply (V) Package
2 116 -100 Single-ended VA?=?±5;
VD?=?5		 16 SOIC


Parameter
Symbol
Min
Max
Unit
DC Power Supplies:

Positive Digital
Positive Analog
Negative Analog
VD+
VA+
VA-
-0.3
-0.3
0.3
(VA+)+ 0.3
6.0
-6.0
V
V
V
Input Current, Any Pin Except Supply
Iin
-
±10
mA
Digital Input Voltage
VIND
(VA+) + 0.3
V
Ambient Operating Temperature (power applied)
TA
+125
°C
Storage Temperature
TSTG
+150
°C





Description

The CS3310 is a complete stereo digital volume control designed specifically for audio systems. It features a 16-bit serial interface that controls two independent, low-distortion audio channels.

The CS3310 includes an array of well-matched resistors and a low-noise active output stage that is capable of driving a 600 load. A total adjustable range of 127 dB, in 0.5 dB steps, is achieved through 95.5 dB of attenuation and 31.5 dB of gain.

The simple 3-wire interface provides daisy-chaining of multiple CS3310s for multichannel audio systems.

CS3310 operates from ±5 V supplies and has an input/output voltage range of ±3.75 V.
