CS4218 General Description


The CS4218 Stereo Audio Codec is a monolithic CMOS device for computer multimedia, automotive, and portable audio applications. It performs A/D and D/A conversion, filtering, and level setting, creating 4 audio inputs and 2 audio outputs for a digital computer system. The digital interfaces of left and right channels are multiplexed into a single serial data bus with word rates up to 50 kHz per channel.

ADCs and the DACs use delta-sigma modulation with 64X oversampling. The ADCs and DACs include digital decimation filters and output smoothing filters on-chip which eliminate the need for external anti-aliasing filters.

The CS4218 is pin and function compatible with the CS4216 when used in Serial modes 3 and 4. See the Appendix A at the end of this data sheet for details.

I2S is a trademark of Philips.

CS4218 Maximum Ratings

Parameter
Symbol
Min
Typ
Max
Units
Power Supplies: Digital
Power Supplies: Analog
VD
VA
-0.3
-0.3
-
-
6.0
6.0
V
V
Input Current (Except Supply Pins)
-
-
±10.0
mA
Analog Input Voltage
-0.3
-
VA+0.3
V
Digital Input Voltage
-0.3
-
VD+0.3
V
Ambient Temperature (Power Applied)
-55
-
+125
°C
Storage Temperature
-65
-
+150
°C

CS4218 Features

· Delta-Sigma A/D and D/A Converters using 64x Oversampling.
· Input Anti-Aliasing and Output Smoothing Filters.
· Programmable Input Gain (0 dB to 22.5 dB).
· Programmable Output Attenuation (0 dB to 46.5 dB).
· Sample frequencies from 4 kHz to 50 kHz.
· Low Distortion, THD < 0.02% for DAC. THD < 0.02% for ADC.
· Low Power Dissipation: 80 mA typical.
· Power-Down Mode : 1 mA typical.
· Pin Compatible with CS4216 when used in Serial Modes 3 and 4 (See Appendix A).
· I2S(TM) Compatible Serial Mode (SM5).
· Operates from 5V or 3.3V Digital Power Supply. Requires 5V Analog Power Supply.

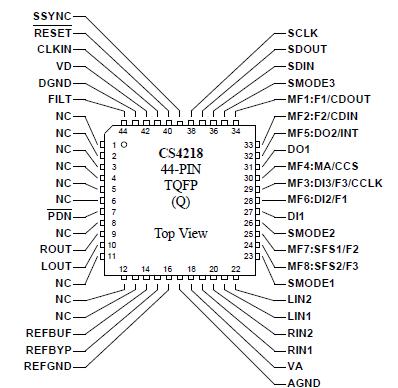

CS4218 Connection Diagram
